400 Series

400 Bike Racks

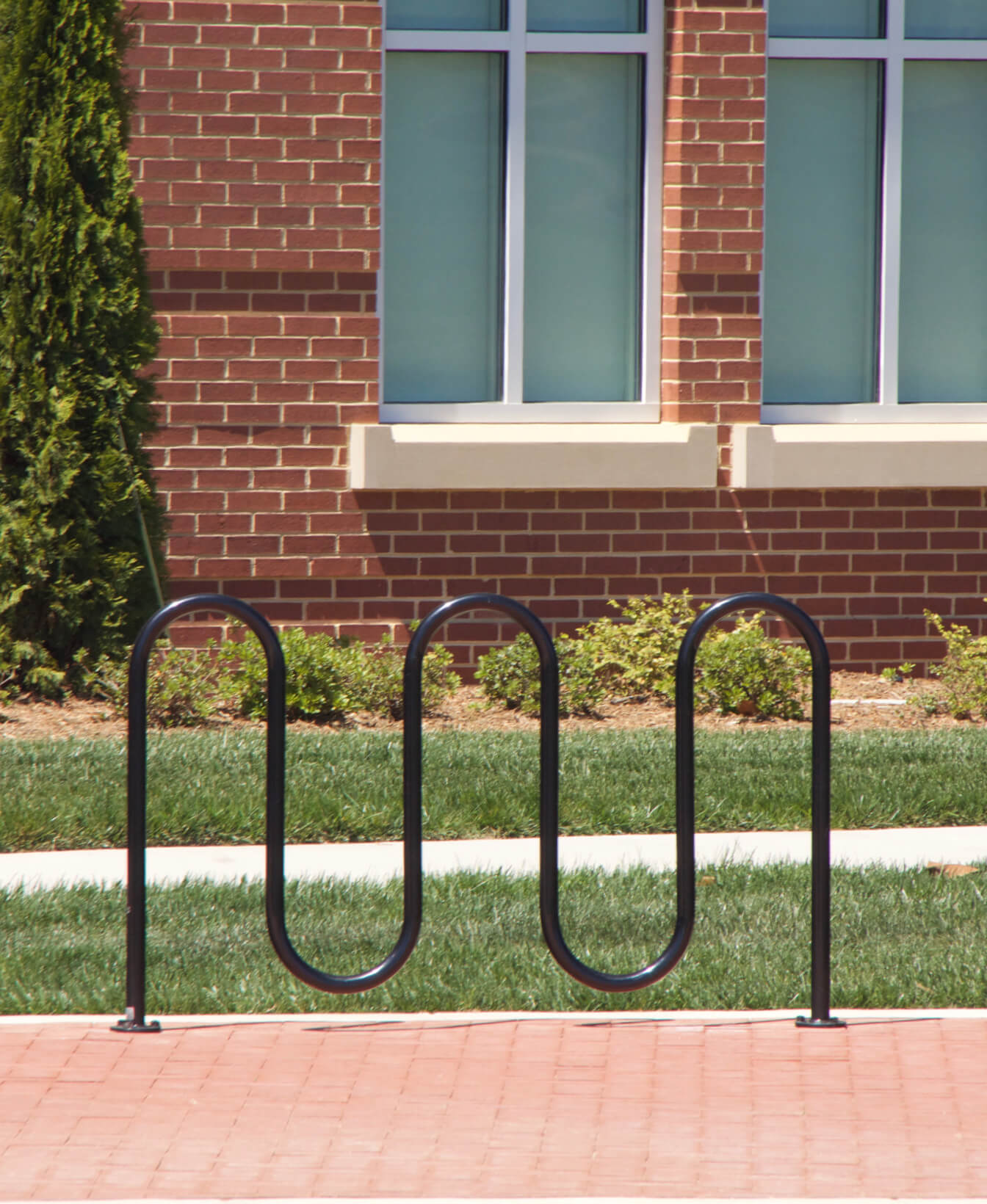

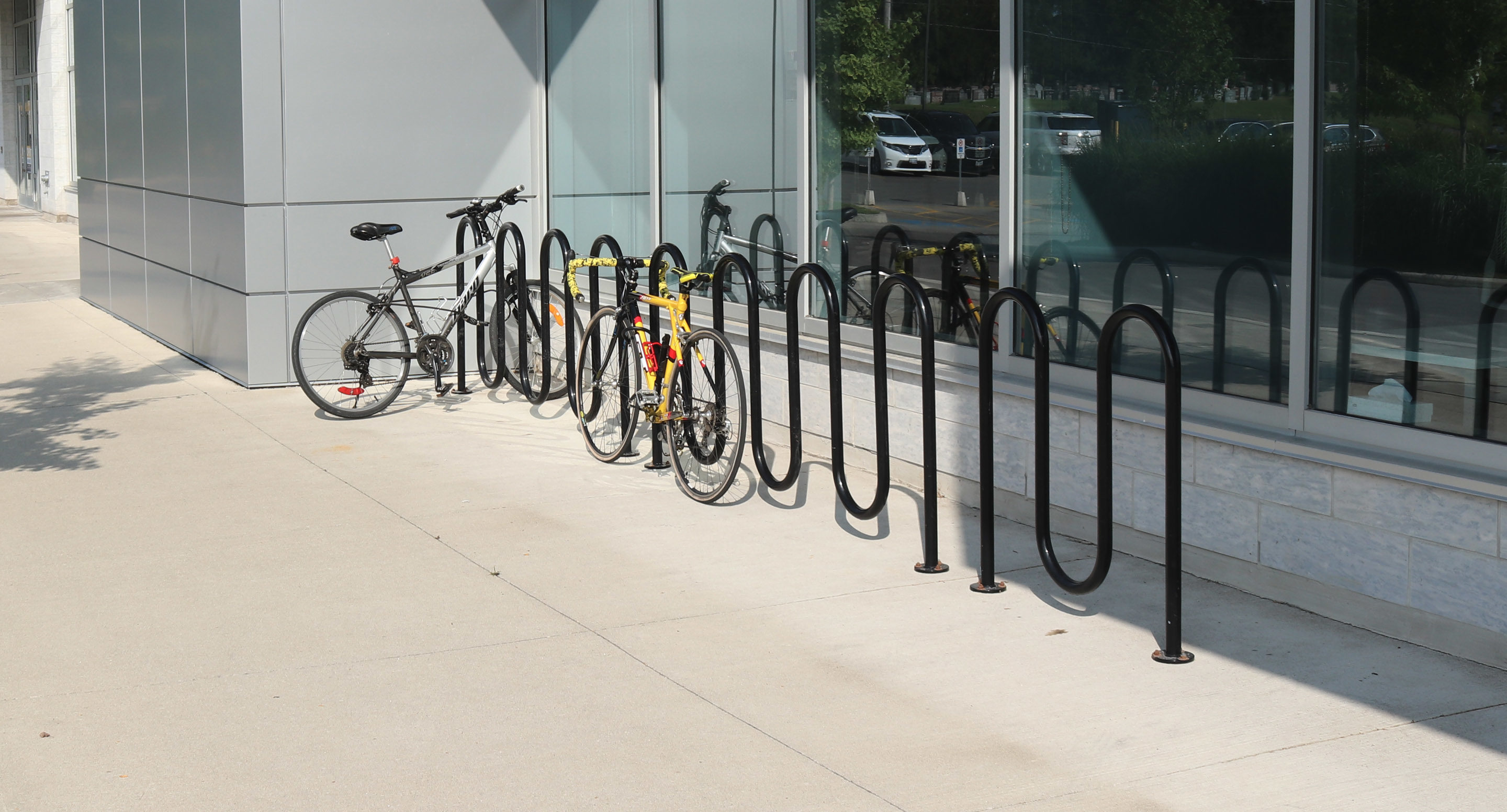

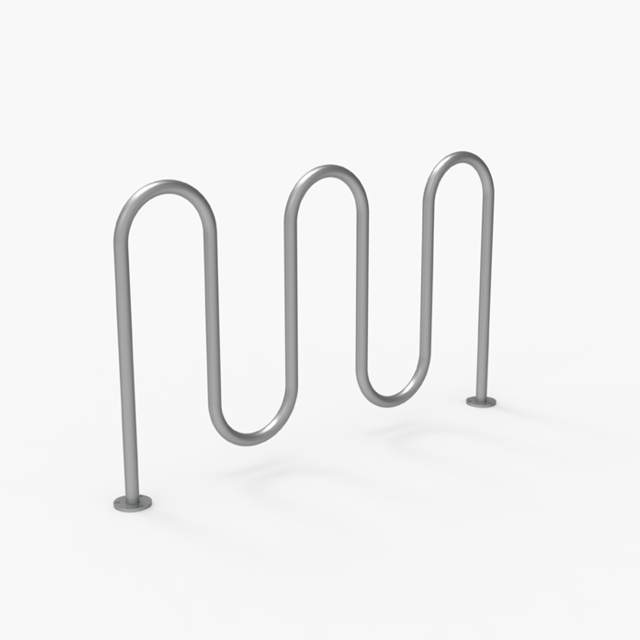

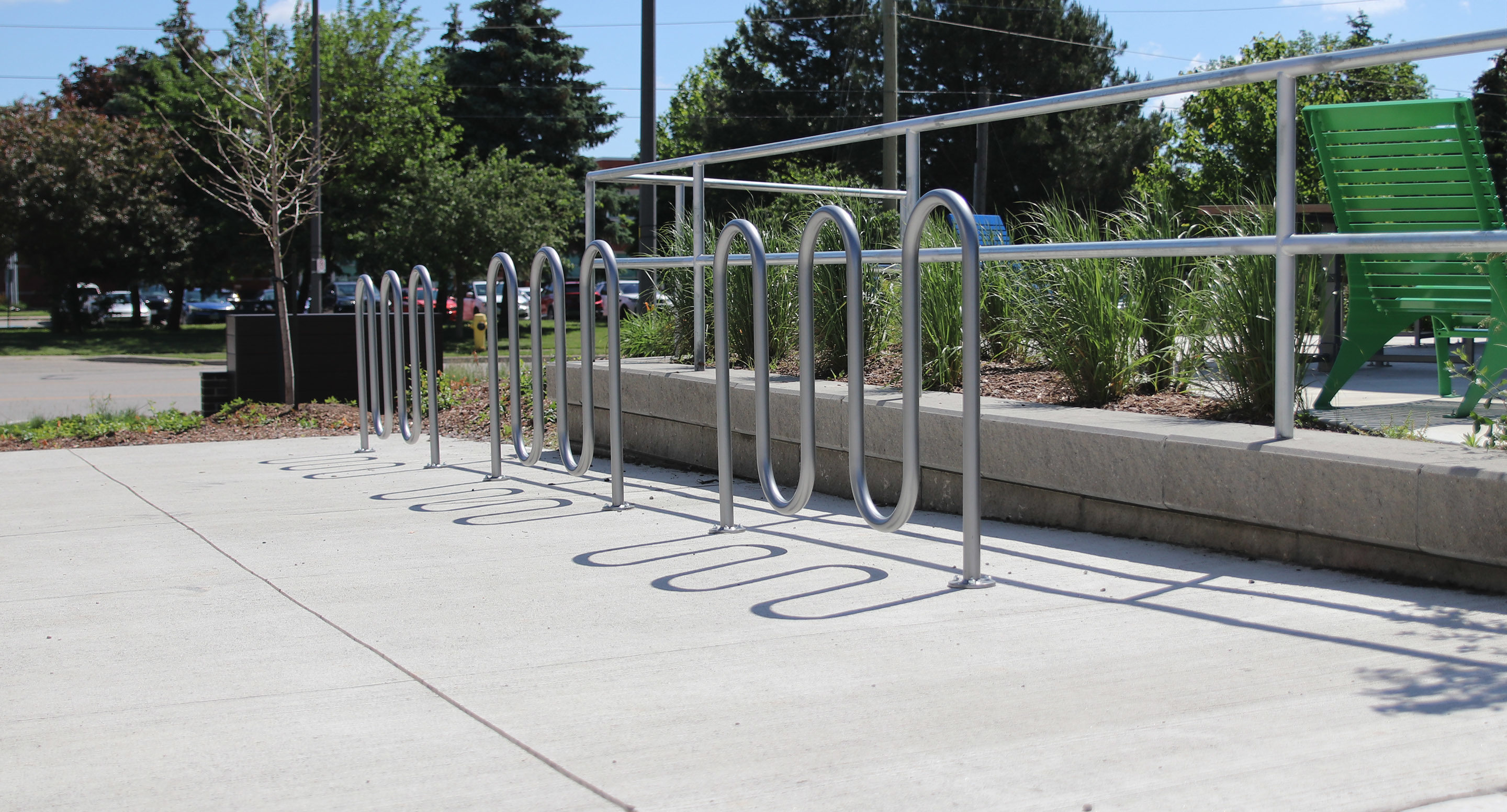

The rolling wave design of the 400 Series – 400 Bicycle Rack suits hospitals, offices and campuses and any places where higher capacity is crucial. This bike rack can hold 5 to 11 bicycles depending on the configuration and is available in surface mount or direct burial installation options. Install several units side-by-side to create an elongated, continuous wave.

Click Quick Quote to receive model number and pricing.
Material Options
  • H.S. Steel Tube
Options

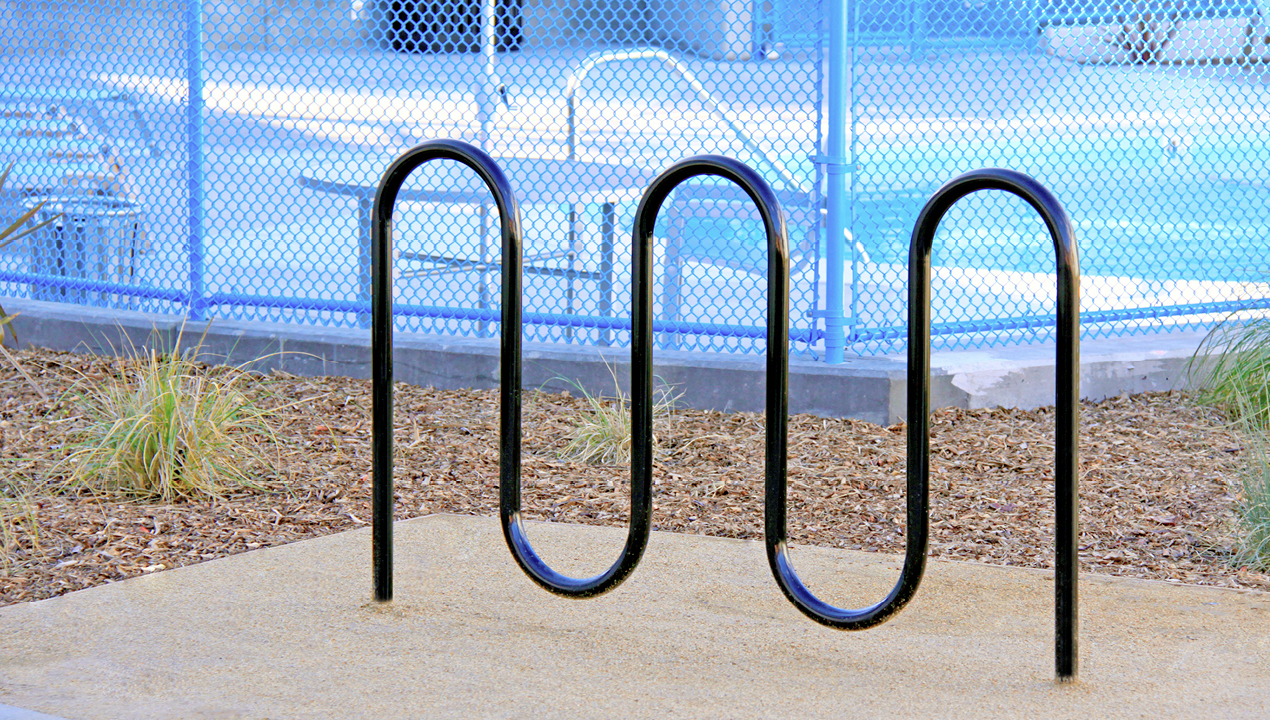

  • Direct Burial

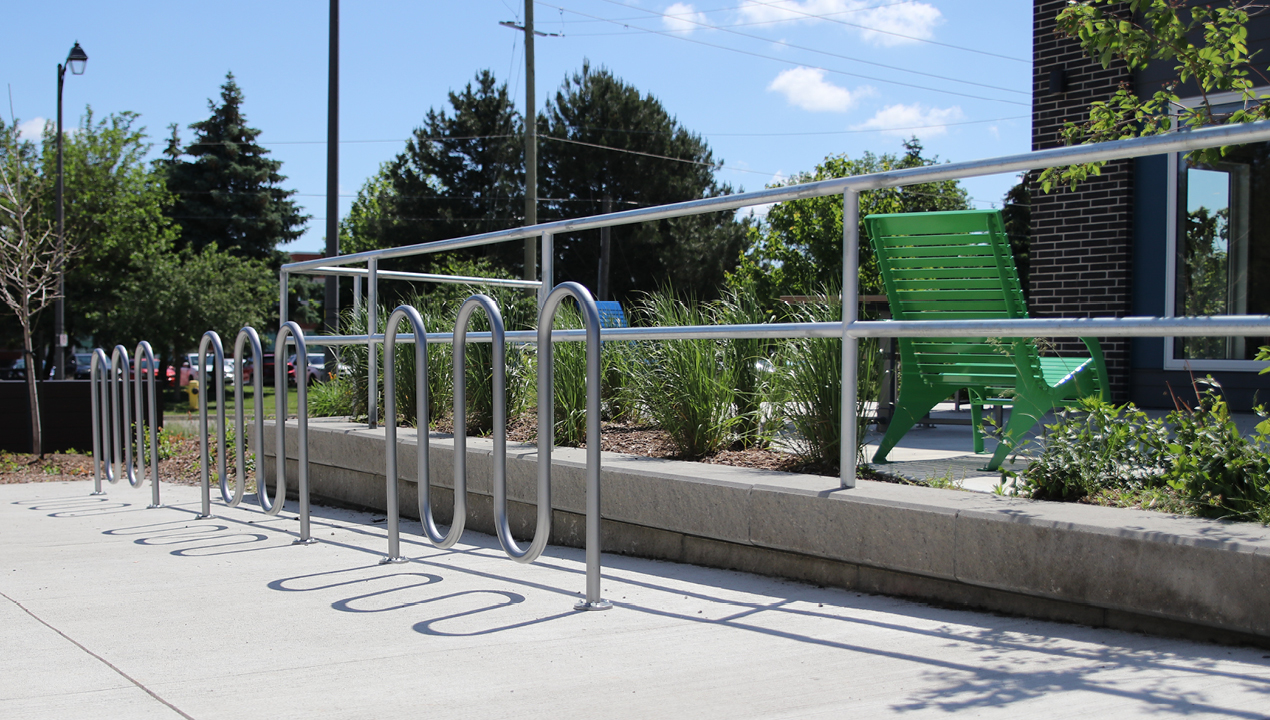

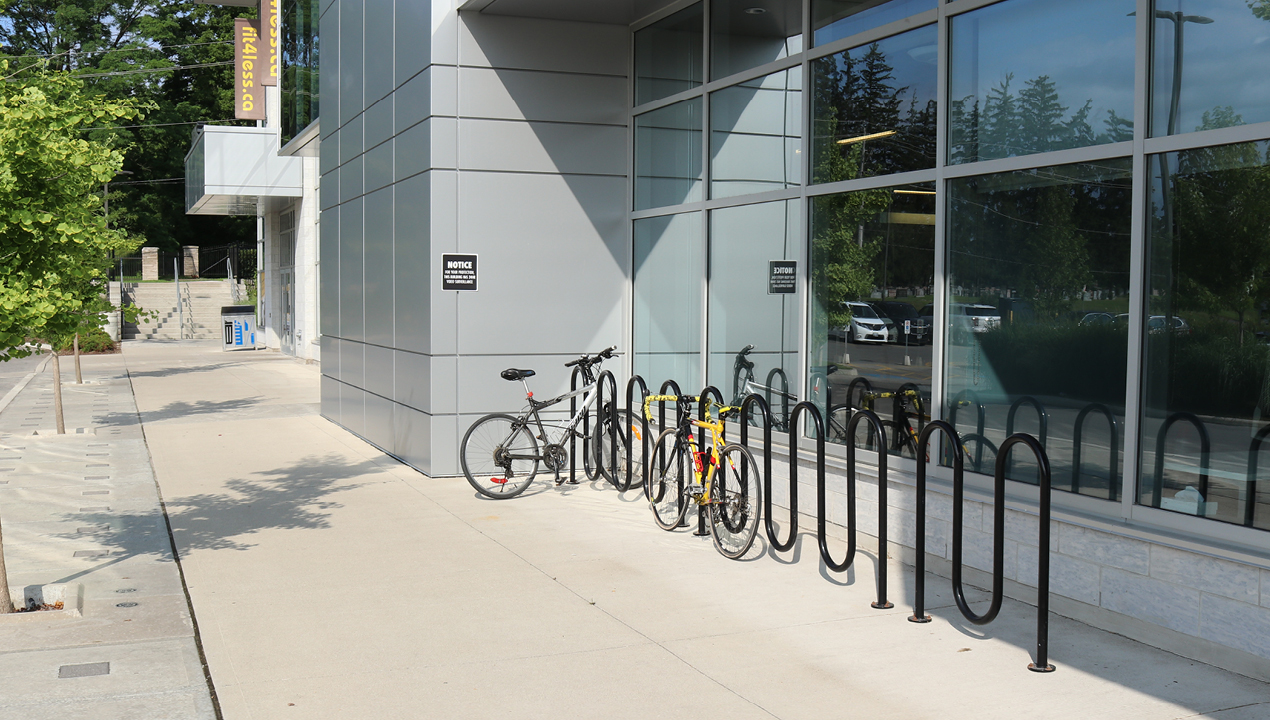

  • Surface Mount
  • 5 Bike Configuration
  • 7 Bike Configuration
  • 9 Bike Configuration
  • 11 Bike Configuration
Finishes

All steel components are protected with E-Coat Rust Proofing. The Maglin Powdercoat System provides a durable finish on all metal surfaces.

Installation

The 400 Series - 400 Bike Racks are delivered pre-assembled. It is available with a surface mount or direct burial installation option.

H.S. Steel Tube

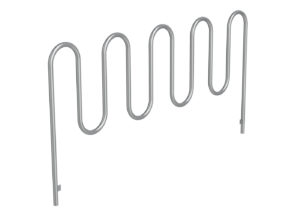

Direct Burial, 11 Bikes
Length: 109.6” (278.4cm)
Height: 37.8” (95.9cm)
Depth: 1.6” (4.1cm)
Height Above Grade: 37.8” (95.9cm)
Height Below Grade: 18” (45.7cm)
Weight: 59.2lbs (26.9kg)
H.S. Steel Tube

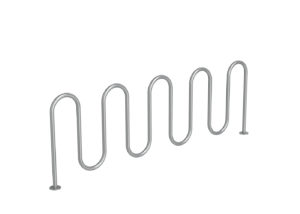

Surface Mount, 11 Bikes
Length: 112.5” (285.8cm)
Height: 37.8” (95.9cm)
Depth: 4.5” (11.4cm)
Height Above Grade: 37.8” (95.9cm)
Weight: 69lbs (31.3kg)
H.S. Steel Tube

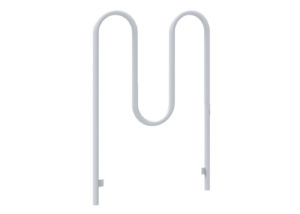

Direct Burial, 5 Bikes
Length: 37.6” (95.6cm)
Height: 37.8” (95.9cm)
Depth: 1.6” (4.1cm)
Height Above Grade: 37.8” (95.9cm)
Height Below Grade: 18” (45.7cm)
Weight: 27.2lbs (12.3kg)
H.S. Steel Tube

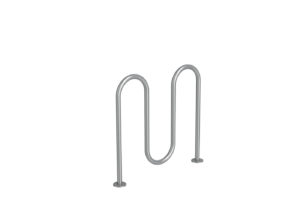

Surface Mount, 5 Bikes
Length: 40.5” (102.9cm)
Height: 37.8” (95.9cm)
Depth: 4.5” (11.4cm)
Height Above Grade: 37.8” (95.9cm)
Weight: 39.3lbs (17.8kg)
H.S. Steel Tube

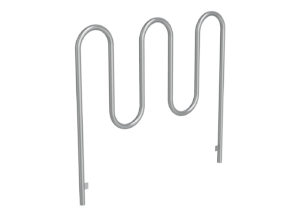

Direct Burial, 7 Bikes
Length: 61.6” (156.5cm)
Height: 37.8” (95.9cm)
Depth: 1.6” (4.1cm)
Height Above Grade: 37.8” (95.9cm)
Height Below Grade: 18” (45.7cm)
Weight: 37.7lbs (17.1kg)
H.S. Steel Tube

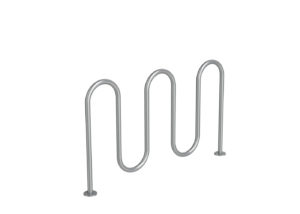

Surface Mount, 7 Bikes
Length: 64.5” (163.8cm)
Height: 37.8” (95.9cm)
Depth: 4.5” (11.4cm)
Height Above Grade: 37.8” (95.9cm)
Weight: 35.1lbs (15.9kg)
H.S. Steel Tube

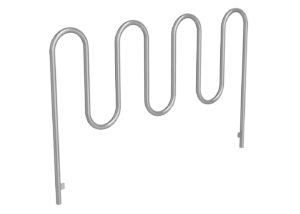

Direct Burial, 9 Bikes
Length: 85.4” (217.0cm)
Height: 37.8” (95.9cm)
Depth: 1.6” (4.1cm)
Height Above Grade: 37.8” (95.9cm)
Height Below Grade: 18” (45.7cm)
Weight: 48.5lbs (22.0kg)
H.S. Steel Tube
Surface Mount, 9 Bikes
Length: 88.5” (224.8cm)
Height: 37.8” (95.9cm)
Depth: 4.5” (11.4cm)
Height Above Grade: 37.8” (95.9cm)
Weight: 45.9lbs (20.8kg)
