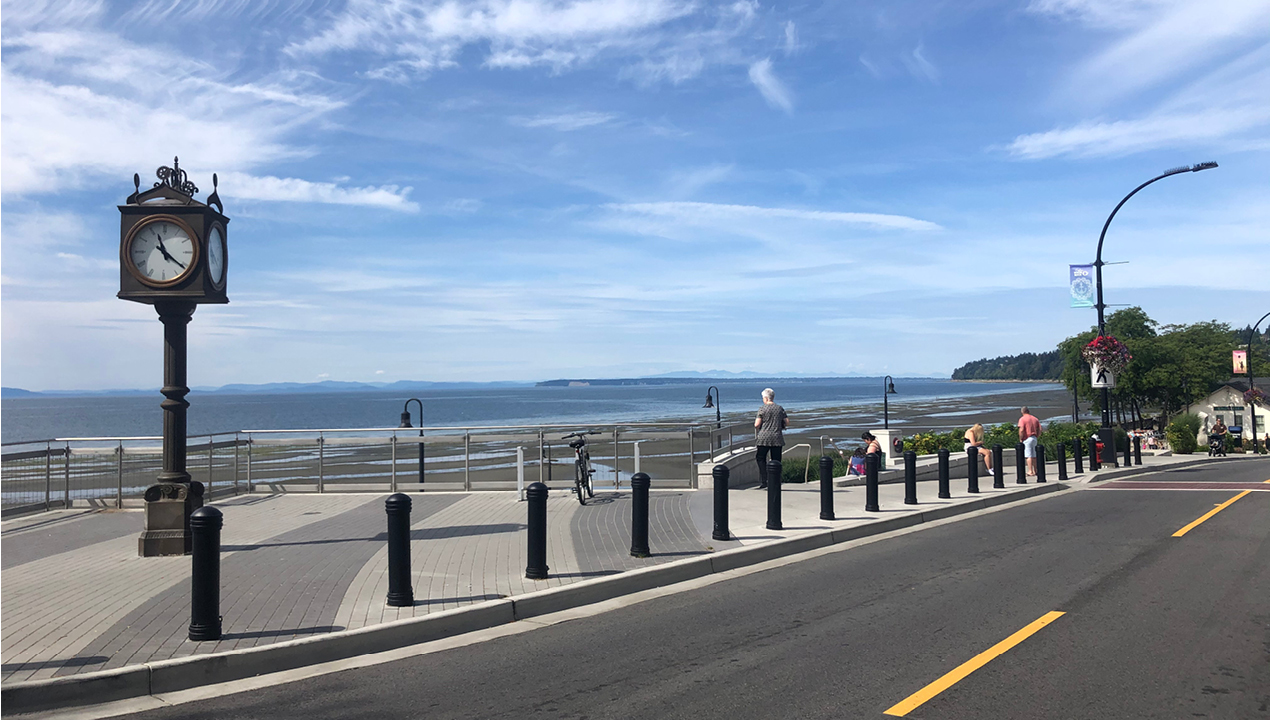

Black bollards line street with clock tower and blue skies

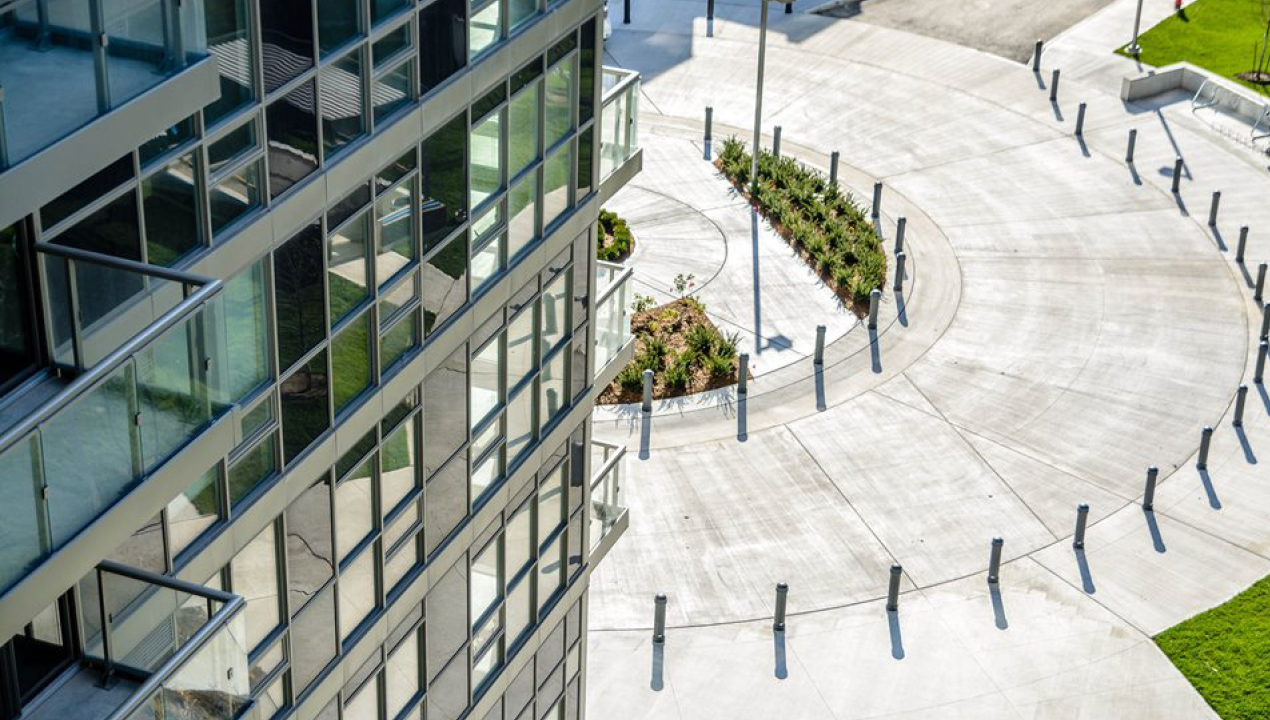

Bollards Outside Building

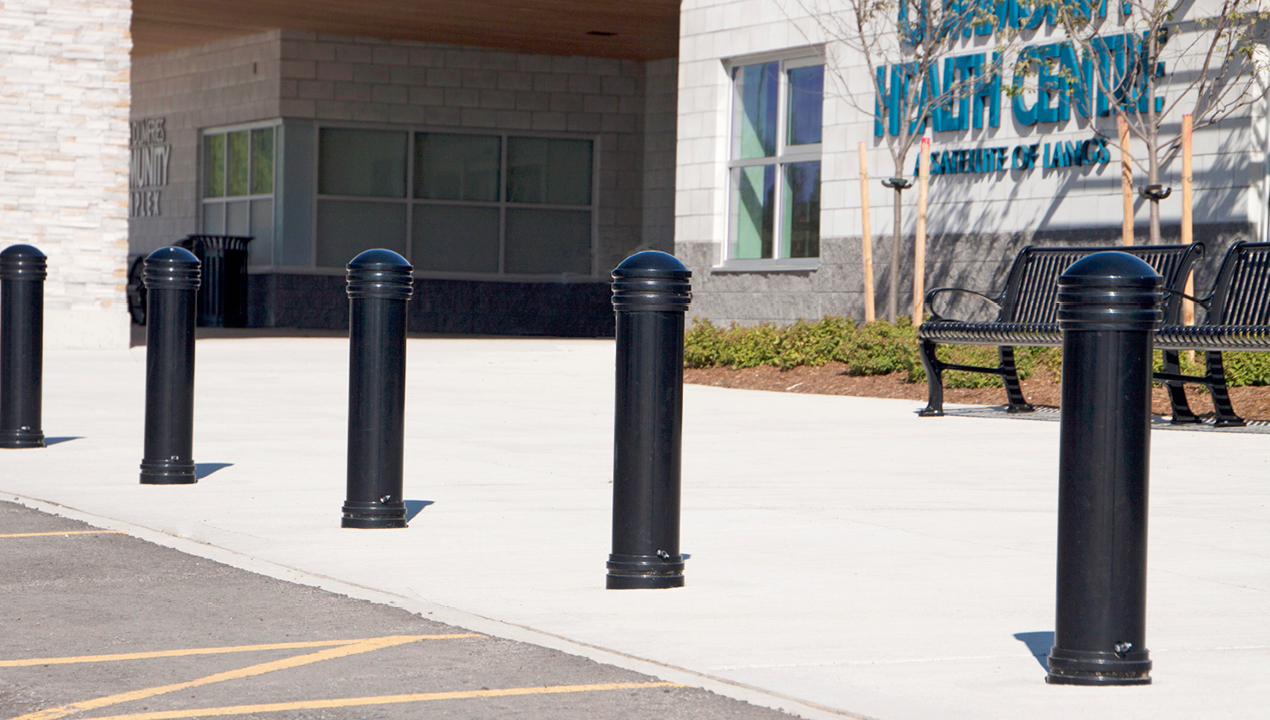

Bollards Outside Health Center

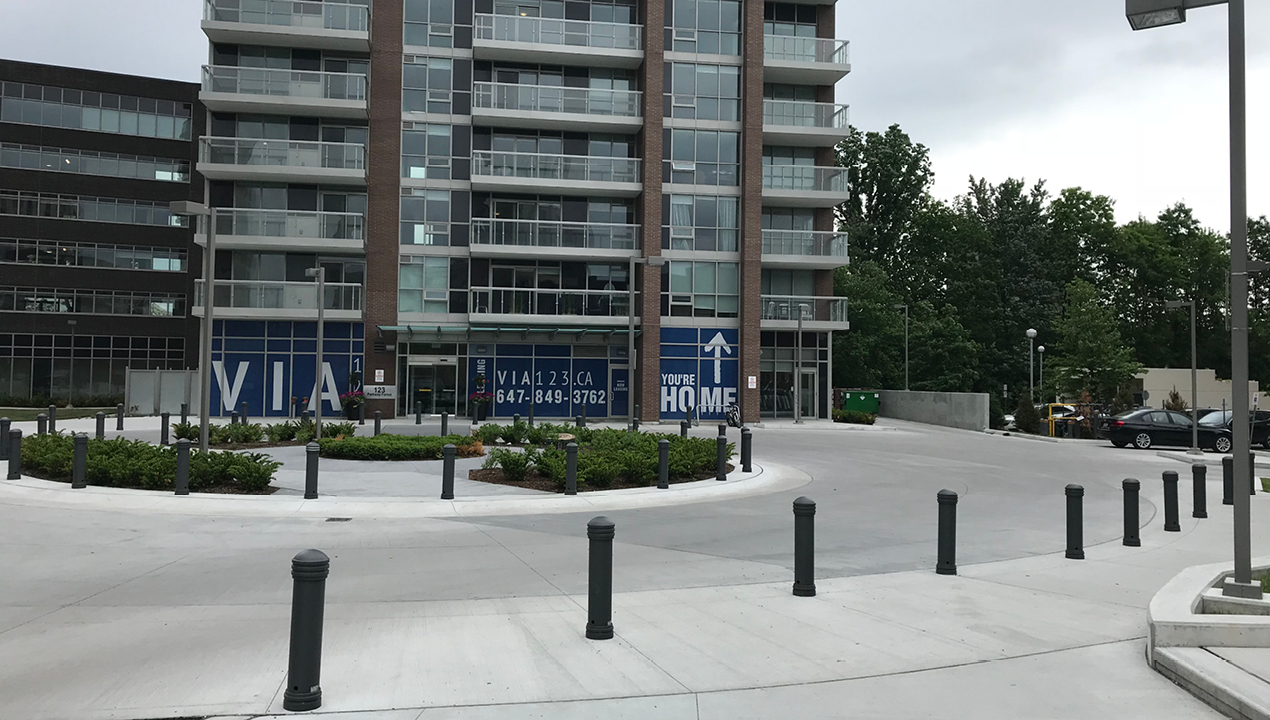

Bollards Outside Apartment Buildings

600 Series

650 Bollards

The 600 Series – 650 Bollard helps establish a perimeter with style that is suitable in both modern and traditional design contexts. The bollard is constructed of HS steel tube and capped with decorative cast aluminum top and base. Four base type options are available for easy installation allowing for fixed or removable configurations. Optional forged steel eyebolts (for attaching chain) are available, and swing gates can be added to bollards using Type-4 bases.

Click Quick Quote to receive model number and pricing.
Material Options
  • H.S. Steel Tube, Cast Aluminum Top and Base
Options
  • Direct Burial
  • Removable
  • Eyebolts
  • Reflective Tape
  • Swing Gate (Base Type 4 Only)
Finishes

All steel components are protected with E-Coat Rust Proofing. The Maglin Powdercoat System provides a durable finish on all metal surfaces.

Installation

Base Type 1 - Bollard is supplied with additional 18" of tubing to be set in concrete. Bollard is permanently fixed in place.
Base Type 2 - Threaded rod is set into concrete. Bollard is screwed onto rod and tightened. For use in existing concrete or where bollard may need to be removed frequently.
Base Type 3 - Threaded anchor is set into concrete and the bollard is screwed into the anchor. To prevent debris from accumulating in the opening while the bollard is removed, a plug is supplied. The plug also protects the anchor threads. For use when bollard is removed for long periods.
Base Type 4 - Base tubing sleeve is set into concrete. Bollard slides over sleeve and is fastened together by a pin through the outer and inner tubes. A padlock can be used to lock the bollard in position. This bollard type is easy to remove frequently.

H.S. Steel Tube, Cast Aluminum Top and Base
1 - Direct Burial, No Swing Gate
Height: 33.1” (84.1cm)
Depth: 6.6” (16.8cm)
Height Above Grade: 33.1” (84.1cm)
Height Below Grade: 18” (45.7cm)
Diameter: 6.6” (16.8cm)
Wall Thickness: 0.3” (0.6cm)
Weight: 85lbs (38.6kg)
H.S. Steel Tube, Cast Aluminum Top and Base
1 - Direct Burial, No Swing Gate
Height: 33.1” (84.1cm)
Depth: 6.6” (16.8cm)
Height Above Grade: 33.1” (84.1cm)
Height Below Grade: 18” (45.7cm)
Diameter: 6.6” (16.8cm)
Wall Thickness: 0.3” (0.6cm)
H.S. Steel Tube, Cast Aluminum Top and Base
2 - Removable, No Swing Gate
Height: 33.2” (84.3cm)
Depth: 6.6” (16.8cm)
Height Above Grade: 33.2” (84.3cm)
Height Below Grade: 6” (15.2cm)
Diameter: 6.6” (16.8cm)
Wall Thickness: 0.3” (0.6cm)
Weight: 59lbs (26.8kg)
H.S. Steel Tube, Cast Aluminum Top and Base
2 - Removable, No Swing Gate
Height: 33.2” (84.3cm)
Depth: 6.6” (16.8cm)
Height Above Grade: 33.2” (84.3cm)
Height Below Grade: 6” (15.2cm)
Diameter: 6.6” (16.8cm)
Wall Thickness: 0.3” (0.6cm)
H.S. Steel Tube, Cast Aluminum Top and Base
3 - Removable, No Swing Gate
Height: 33.2” (84.3cm)
Depth: 6.6” (16.8cm)
Height Above Grade: 33.2” (84.3cm)
Height Below Grade: 8.5” (21.6cm)
Diameter: 6.6” (16.8cm)
Wall Thickness: 0.3” (0.6cm)
Weight: 59lbs (26.8kg)
H.S. Steel Tube, Cast Aluminum Top and Base
3 - Removable, No Swing Gate
Height: 33.2” (84.3cm)
Depth: 6.6” (16.8cm)
Height Above Grade: 33.2” (84.3cm)
Height Below Grade: 8.5” (21.6cm)
Diameter: 6.6” (16.8cm)
Wall Thickness: 0.3” (0.6cm)
H.S. Steel Tube, Cast Aluminum Top and Base
4 - Removable, No Swing Gate
Height: 33.1” (84.1cm)
Depth: 6.6” (16.8cm)
Height Above Grade: 33.1” (84.1cm)
Height Below Grade: 17” (43.2cm)
Diameter: 6.6” (16.8cm)
Wall Thickness: 0.3” (0.6cm)
Weight: 85lbs (38.6kg)
H.S. Steel Tube, Cast Aluminum Top and Base
4 - Removable, No Swing Gate / Swing Gate
Height: 33.1” (84.1cm)
Depth: 6.6” (16.8cm)
Height Above Grade: 33.1” (84.1cm)
Height Below Grade: 17” (43.2cm)
Diameter: 6.6” (16.8cm)
Wall Thickness: 0.3” (0.6cm)
