Commercial Bike Rack FAQ: Capacity, Spacing & Codes

Start with your local zoning or building code minimum, then add a 20–30% buffer for the continued growth of cycling. There’s no universal figure, but most planning guidelines and green building standards give clear starting points by building type:

• Office buildings: 1 bike space per 5–10 employees, or 1 per 5,000–10,000 sq ft of gross floor area
• Retail: 1 bike space per 500–2,500 sq ft of retail area, depending on jurisdiction
• Multifamily residential: 1 space per unit is increasingly standard; some codes require more
• Schools and universities: 1 space per 10–20 students, often higher for post-secondary campuses
• Transit facilities: Varies widely; LEED and regional transit authorities publish specific minimums

For LEED v5, bicycle storage falls under the Transportation Demand Management credit (LTc4). Commercial and institutional projects targeting it provide short-term storage for at least 2.5% of peak visitors (minimum four spaces) and long-term storage for at least 5% of regular building occupants (minimum four spaces, in addition to short-term).

Maglin recommends at least 36″ (914 mm) from walls or edges, 36″ (914 mm) side-to-side between racks, and 72″ (1,828 mm) front-to-back between racks. These figures, drawn from extensive installation experience, run more generous than some published minimums — and deliberately so. Real-world usability depends on it: bikes with panniers, wide handlebars, child seats, or trailers need the room. Tight spacing looks efficient on a plan but leaves racks half-used in practice. As always, confirm against local codes, which may set their own minimums.

For wave racks like Maglin’s 400 Series, the product installation guide specifies centerline spacing for each configuration — always confirm those dimensions before finalizing a layout.

Code requirements vary by jurisdiction, but several frameworks commonly apply:

Zoning and Development Codes Most municipalities in the U.S. and Canada now include bicycle parking minimums in their zoning bylaws, particularly for commercial, mixed-use, and multifamily developments. Requirements vary significantly — check with your local planning department early in the design process.

LEED v5. Under the current version, bicycle provisions sit within the Transportation Demand Management credit (LTc4), which offers up to four points across parking reduction, active travel facilities, and shower and changing facilities. The active travel path sets specific short- and long-term bicycle storage minimums plus proximity-to-entrance requirements. (LEED v4 and v4.1 remain available for commercial project registration through June 30, 2027, so many in-progress projects still reference them.)

WELL Building Standard WELL includes bicycle provisions under its Movement concept, encouraging active transportation through accessible, well-located bike storage.

IBC / Local Building Codes The International Building Code doesn’t mandate bike parking directly, but local amendments often do. Some jurisdictions also have specific requirements for covered or secured bike storage in certain building types.

Green Globes and BOMA BEST Canadian projects pursuing Green Globes or BOMA BEST certification will find bicycle facility provisions within those frameworks as well.

Bike racks themselves don’t have specific ADA dimensions, but their placement does. Key considerations:

• Accessible route: Bike rack areas must not obstruct the accessible route to building entrances. Maintain a clear width of at least 44 inches (36 inches in some cases) along accessible paths.
• Surface: Rack installations on paved surfaces should maintain a firm, stable, slip-resistant surface in the immediate area.
• Proximity to entry: ADA best practice is to locate bike racks close to main entrances, reducing the distance for all users — including those with mobility considerations.

Many facilities are also beginning to accommodate adaptive cycles and cargo bikes, which need wider spacing and greater rack depth than standard bikes. If your project serves a diverse user population, factor this into the layout from the start.

Both installation methods are available across Maglin’s bike rack range. The decision generally comes down to site conditions and long-term flexibility.

Surface mount is preferred where the substrate is an existing slab, where future reconfiguration is likely, or where subsurface utilities make core drilling impractical. Hardware anchors into the pavement and is typically concealed within the rack base.

Direct burial provides a cleaner visual result with no exposed hardware at grade, and is well-suited to new construction where installation can be coordinated with paving. It’s also more resistant to vandalism or theft of the rack itself.

This depends entirely on rack type and configuration. Maglin’s commercial bike rack range accommodates between 2 and 11 bikes per unit — so specifiers can right-size the installation without over-ordering or leaving capacity gaps.

As a rough planning guide:

• Post and Ring, Inverted-U, etc. racks: 2 bikes per rack

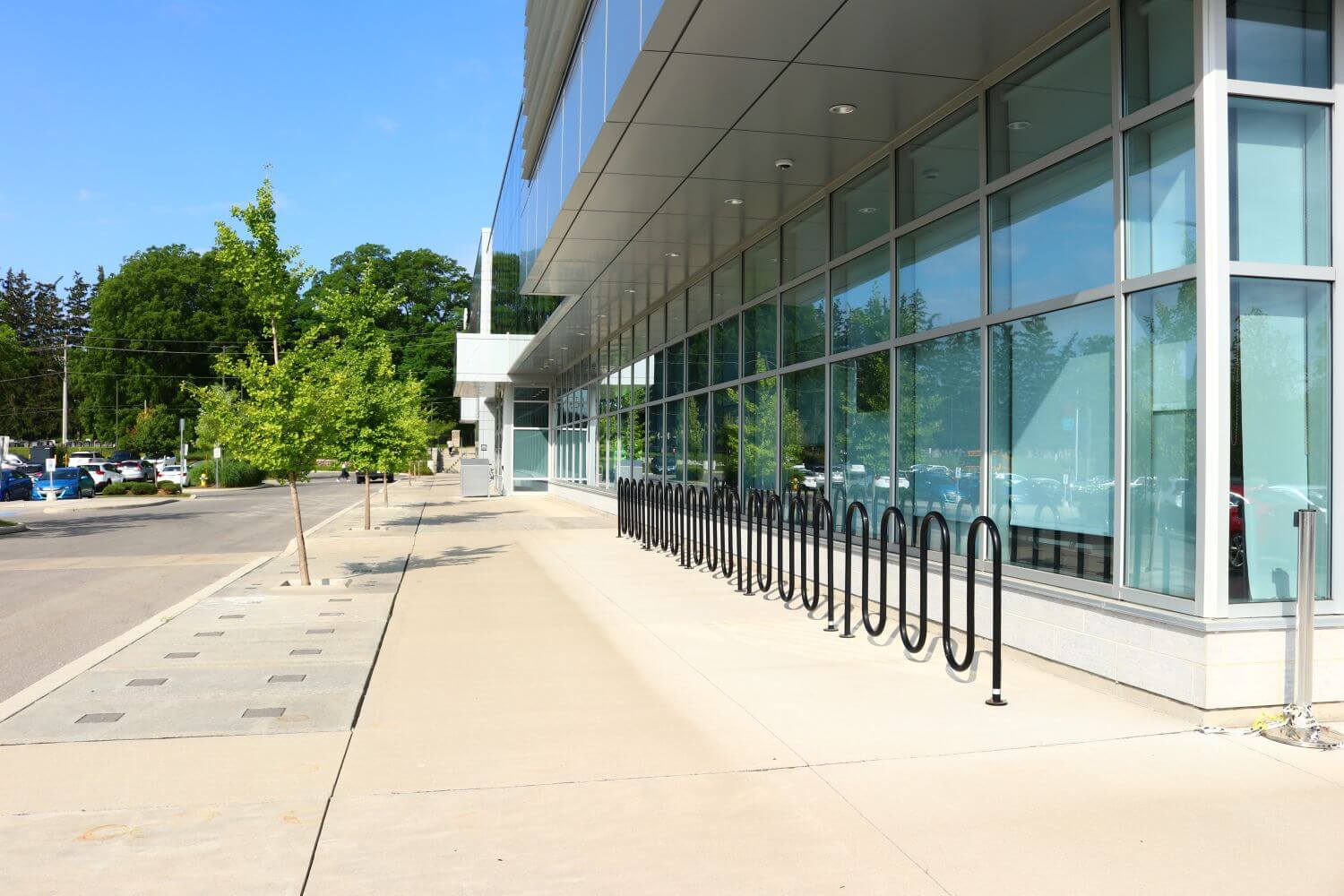

• Wave racks: 5–11 bikes per unit depending on configuration
• High-capacity bike racks: 4–11 bikes per unit

When calculating total capacity, plan for bikes to be locked to the rack frame — not just leaning against it. Racks that offer two locking points per bike (frame and wheel) are strongly preferred by cyclists and are the standard recommended by most bicycle advocacy organizations.

Location is as important as quantity. Poorly sited racks go unused regardless of how well-designed they are.

Best practice guidelines:

• Visible and well-lit: Cyclists are more likely to use racks they can see from the street and that feel secure
• Close to the destination: Within 50 feet of the primary building entrance for short-term parking; longer-term storage can be further, particularly if covered and secure
• Sheltered where possible: Covered bike parking significantly increases usage and reduces weather-related wear on bikes
• On a firm, level surface: Avoid installing racks on grass, gravel, or uneven paving
• Not obstructing pedestrian flow: Maintain clear sidewalk widths and don’t position racks to conflict with accessible routes or sightlines

On larger sites, distribute racks across multiple entry points rather than consolidating all capacity in one location. A smaller number of racks near each entrance will see more use than a large bank in a single spot.

Maglin provides full technical documentation — including dimensional drawings, CAD files, and installation guides — for all bike rack products.

For project-specific guidance on rack selection, spacing, and site planning, contact your Maglin representative directly. Maglin serves commercial, educational, healthcare, municipal, and mixed-use markets across North America.

Browse the full Maglin bike rack collection to explore series, configurations, finishes, and mounting options.
