1600 Series

SC Bollards

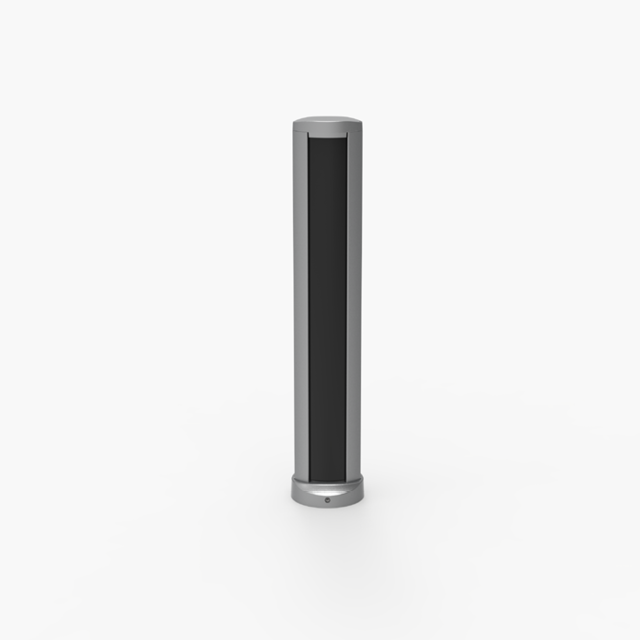

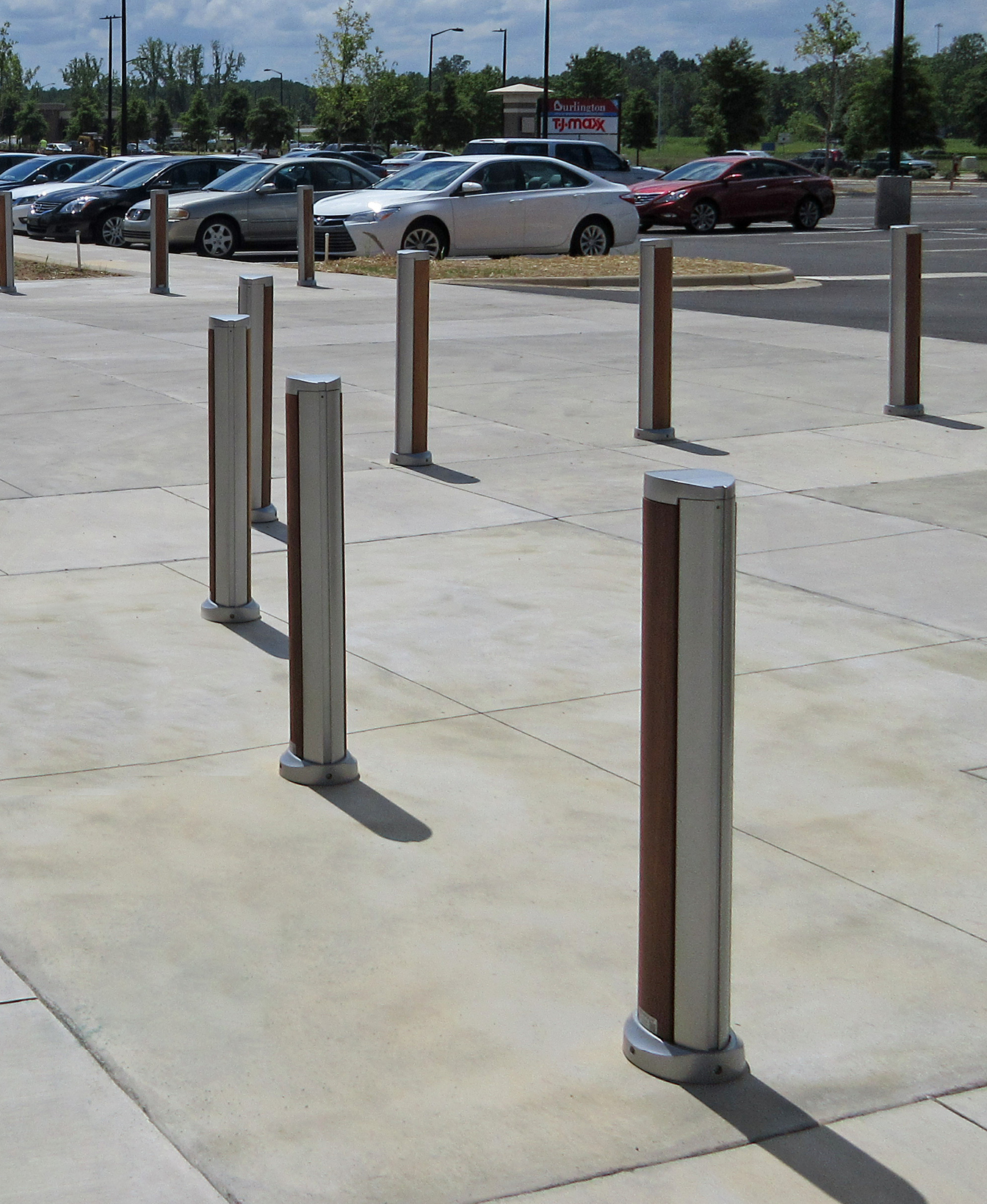

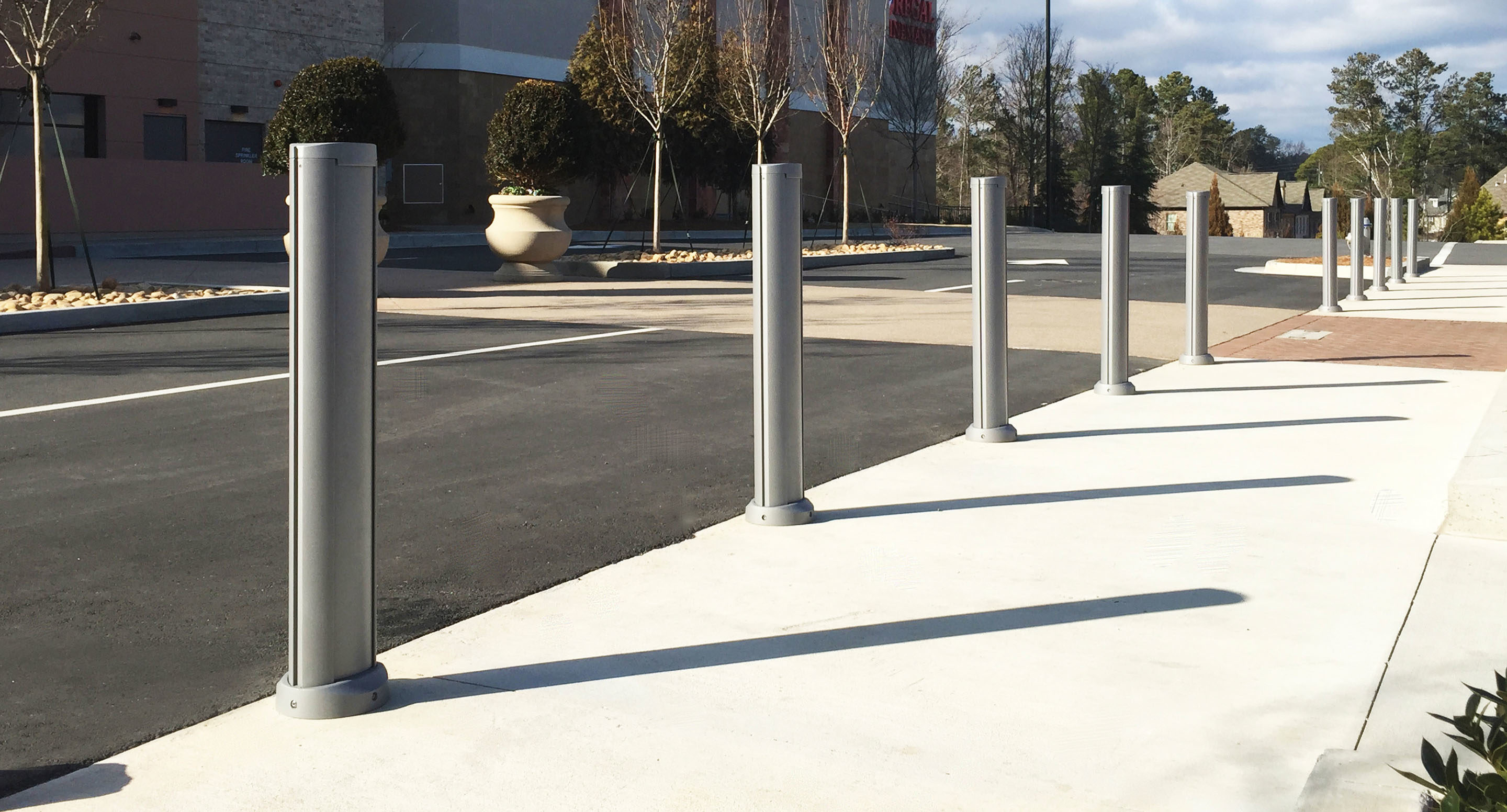

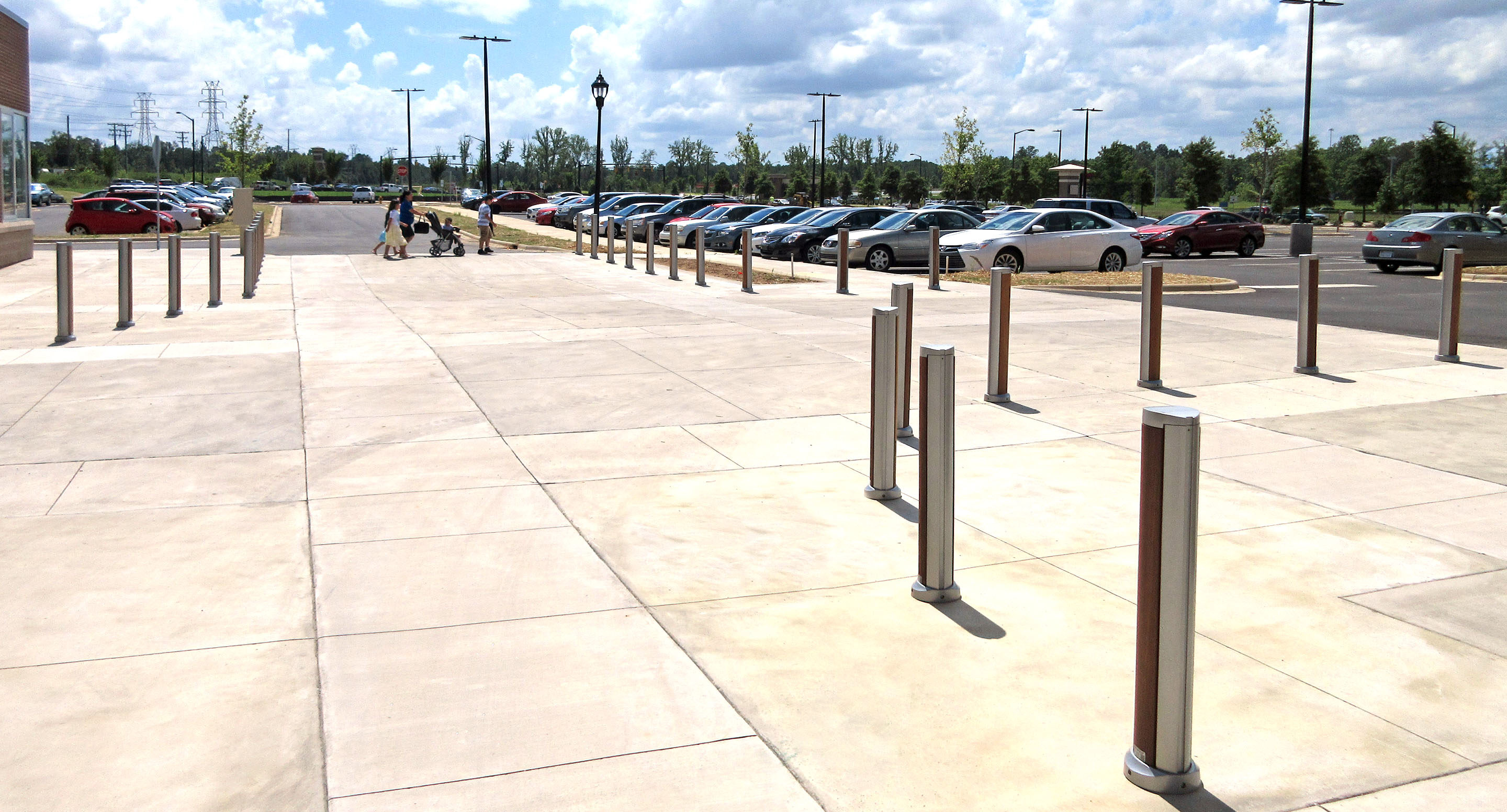

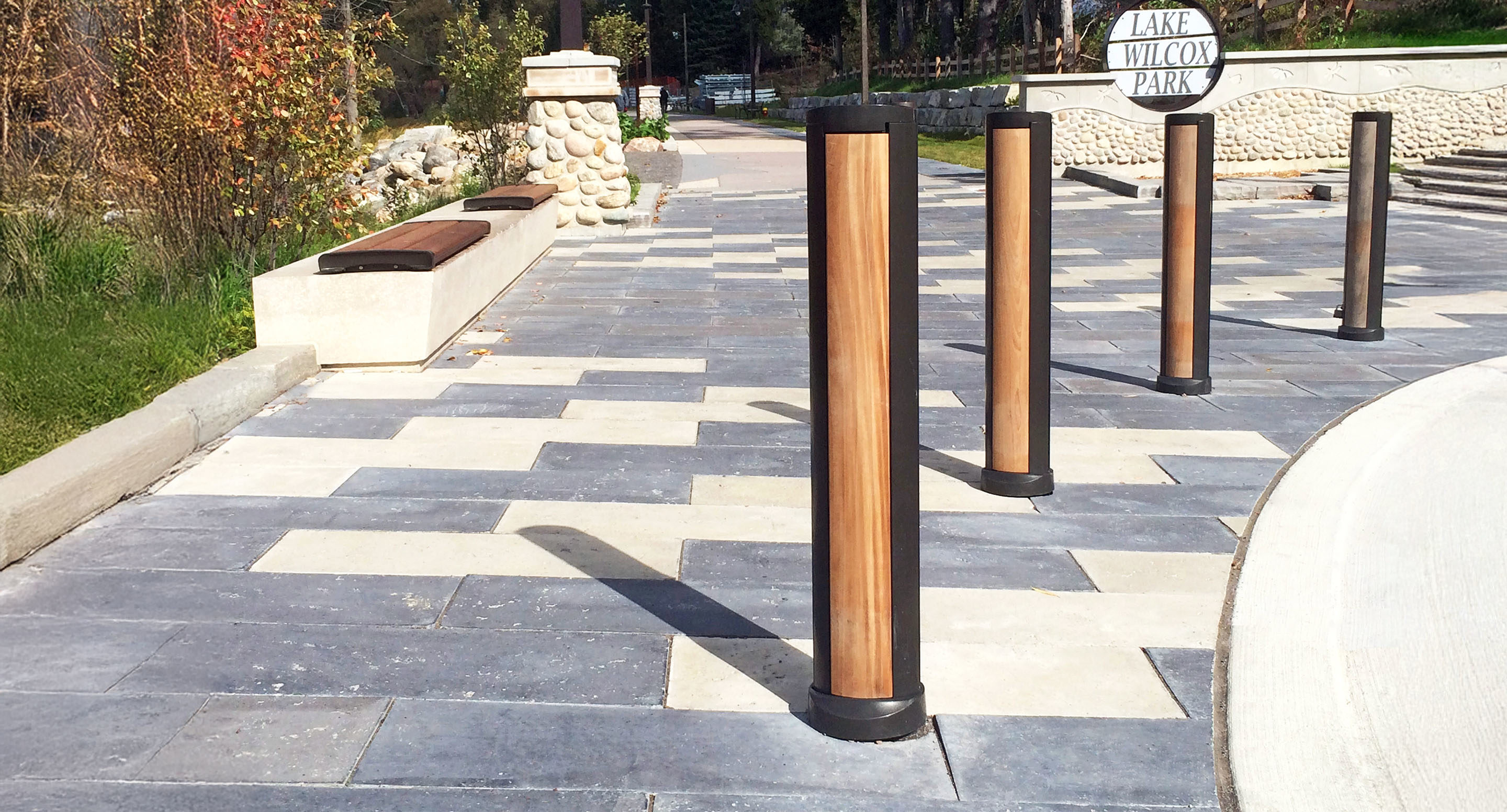

The 1600 Series – SC Bollard delineates pedestrian zones and establishes safe boundaries in shared spaces. This stylish bollard is made with extruded aluminum, cast aluminum decorative top and base, and the option to customize the look with powder-coated aluminum, stainless steel, or Ipe wood trim. Five base type options are available for easy installation allowing for fixed or removable configurations.

Click Quick Quote to receive model number and pricing.
Material Options
  • Extruded Aluminum, Cast Aluminum Top and Base
Options
  • Direct Burial
  • Removable
  • Reflective Tape
Finishes

The Maglin Powdercoat System provides a durable finish on all metal surfaces.

Installation

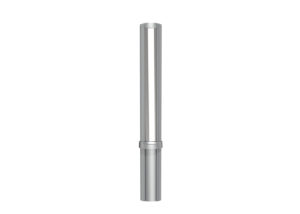

Base Type 1 - Bollard is supplied with additional 18" of tubing to be set in concrete. Bollard is permanently fixed in place.

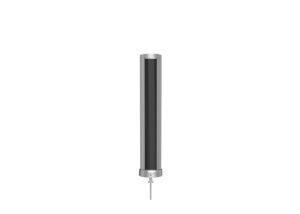

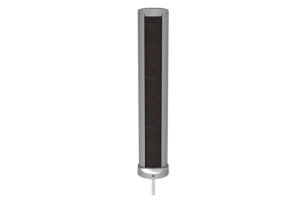

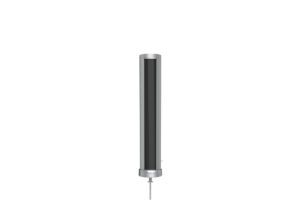

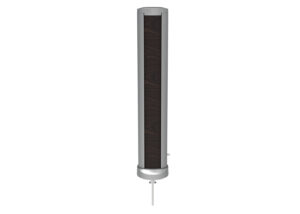

Base Type 2 - Threaded rod is set into concrete. Bollard is screwed onto rod and tightened. For use in existing concrete or where bollard may need to be removed frequently.
Base Type 3 - Threaded anchor is set into concrete and the bollard is screwed into the anchor. To prevent debris from accumulating in the opening while the bollard is removed, a plug is supplied. The plug also protects the anchor threads. For use when bollard is removed for long periods.

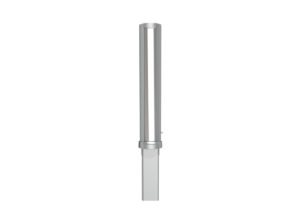

Base Type 4 - Base tubing sleeve is set into concrete. Bollard slides over sleeve and is fastened together by a pin through the outer and inner tubes. A padlock can be used to lock the bollard in position. This bollard type is easy to remove frequently.
Base Type 3/4 - Threaded anchor is set into concrete and the sleeve is screwed onto the anchor. Bollard slides over sleeve and is fastened together by a pin through the outer and inner tubes. A padlock can be used to lock the bollard in position. When bollard and sleeve are removed a plug is provided that prevents debris from entering the opening and damaging the threads.

Extruded Aluminum, Cast Aluminum Top and Base
1 - Direct Burial
Length: 15.8” (40.0cm)
Width: 7” (17.8cm)
Height: 40” (101.6cm)
Depth: 15.8” (40.0cm)
Height Above Grade: 40” (101.6cm)
Height Below Grade: 18” (45.7cm)
Radius: 7.9” (20.0cm)
Weight: 54.9lbs (24.9kg)
Extruded Aluminum, Cast Aluminum Top and Base

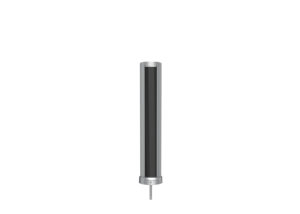

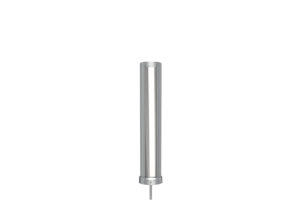

2 - Removable
Length: 15.8” (40.0cm)
Width: 7” (17.8cm)
Height: 40” (101.6cm)
Depth: 15.8” (40.0cm)
Height Above Grade: 40” (101.6cm)
Height Below Grade: 18” (45.7cm)
Radius: 7.9” (20.0cm)
Weight: 40.8lbs (18.5kg)
Extruded Aluminum, Cast Aluminum Top and Base

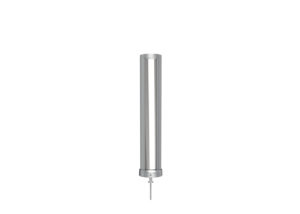

3 - Removable
Length: 15.8” (40.0cm)
Width: 7” (17.8cm)
Height: 40” (101.6cm)
Depth: 15.8” (40.0cm)
Height Above Grade: 40” (101.6cm)
Height Below Grade: 8.5” (21.6cm)
Radius: 7.9” (20.0cm)
Weight: 40.4lbs (18.3kg)
Extruded Aluminum, Cast Aluminum Top and Base
3 - Removable / 3/4 - Removable
Length: 15.8” (40.0cm)
Width: 7” (17.8cm)
Height: 40” (101.6cm)
Depth: 15.8” (40.0cm)
Height Above Grade: 40” (101.6cm)
Height Below Grade: 8.5” (21.6cm)
Radius: 7.9” (20.0cm)
Extruded Aluminum, Cast Aluminum Top and Base

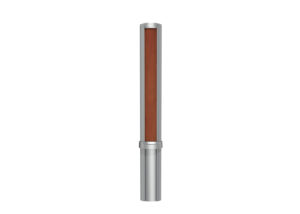

4 - Removable
Length: 15.8” (40.0cm)
Width: 7” (17.8cm)
Height: 40” (101.6cm)
Depth: 15.8” (40.0cm)
Height Above Grade: 40” (101.6cm)
Height Below Grade: 18” (45.7cm)
Radius: 7.9” (20.0cm)
Weight: 40.4lbs (18.3kg)
Extruded Aluminum, Cast Aluminum Top and Base
1 - Direct Burial / 2 - Removable / 4 - Removable
Length: 15.8” (40.0cm)
Width: 7” (17.8cm)
Height: 40” (101.6cm)
Depth: 15.8” (40.0cm)
Height Above Grade: 40” (101.6cm)
Height Below Grade: 18” (45.7cm)
Radius: 7.9” (20.0cm)
Extruded Aluminum, Cast Aluminum Top and Base
1 - Direct Burial
Length: 15.8” (40.0cm)
Width: 7” (17.8cm)
Height: 40” (101.6cm)
Depth: 15.8” (40.0cm)
Height Above Grade: 40” (101.6cm)
Height Below Grade: 18” (45.7cm)
Radius: 7.9” (20.0cm)
Weight: 71lbs (32.2kg)
