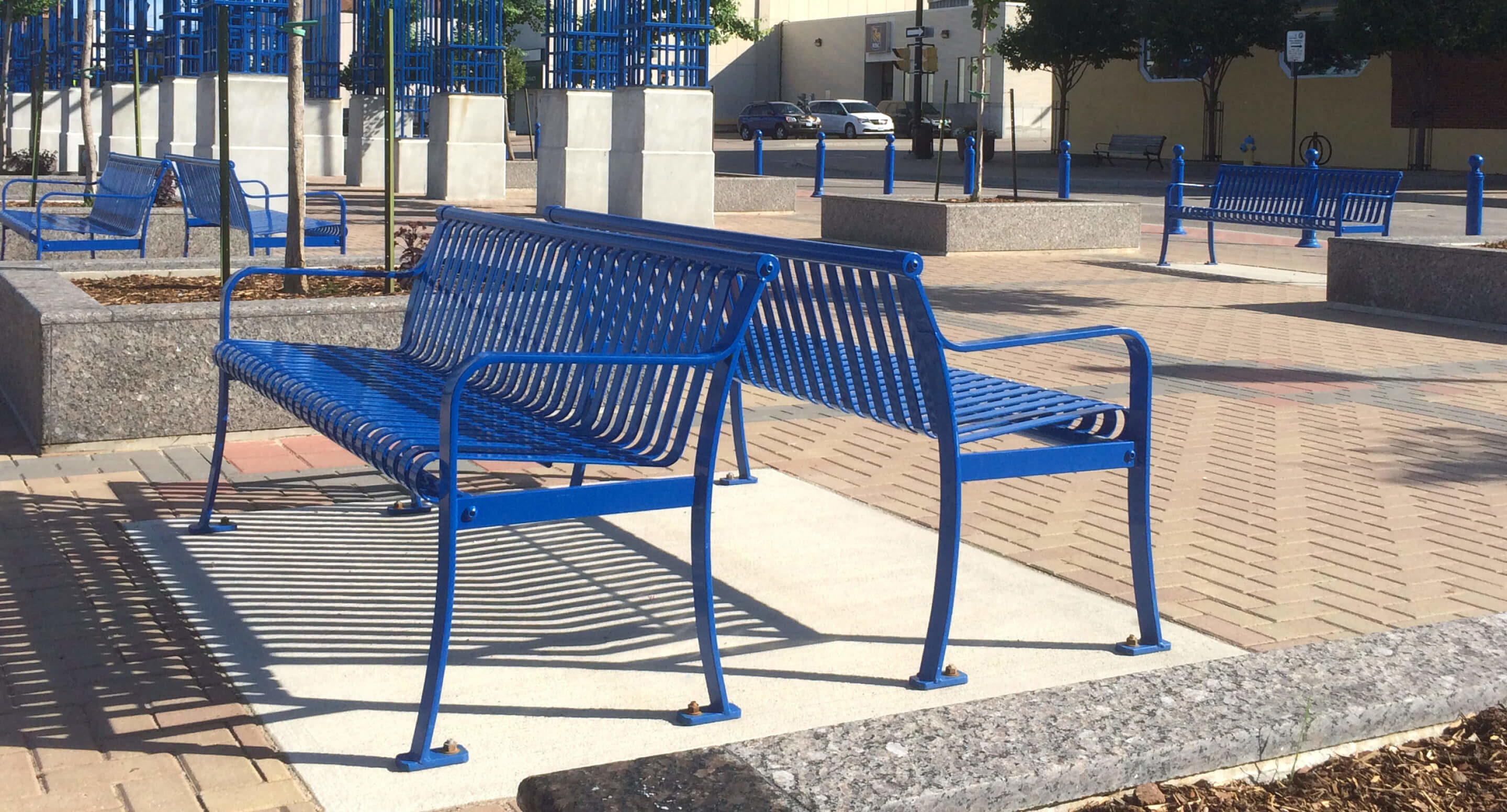

A blue double-sided metal bench is positioned on a brick walkway in an urban outdoor setting, with other benches and street features visible in the background.A blue double-sided metal bench is positioned on a brick walkway in an urban outdoor setting, with other benches and street features visible in the background.

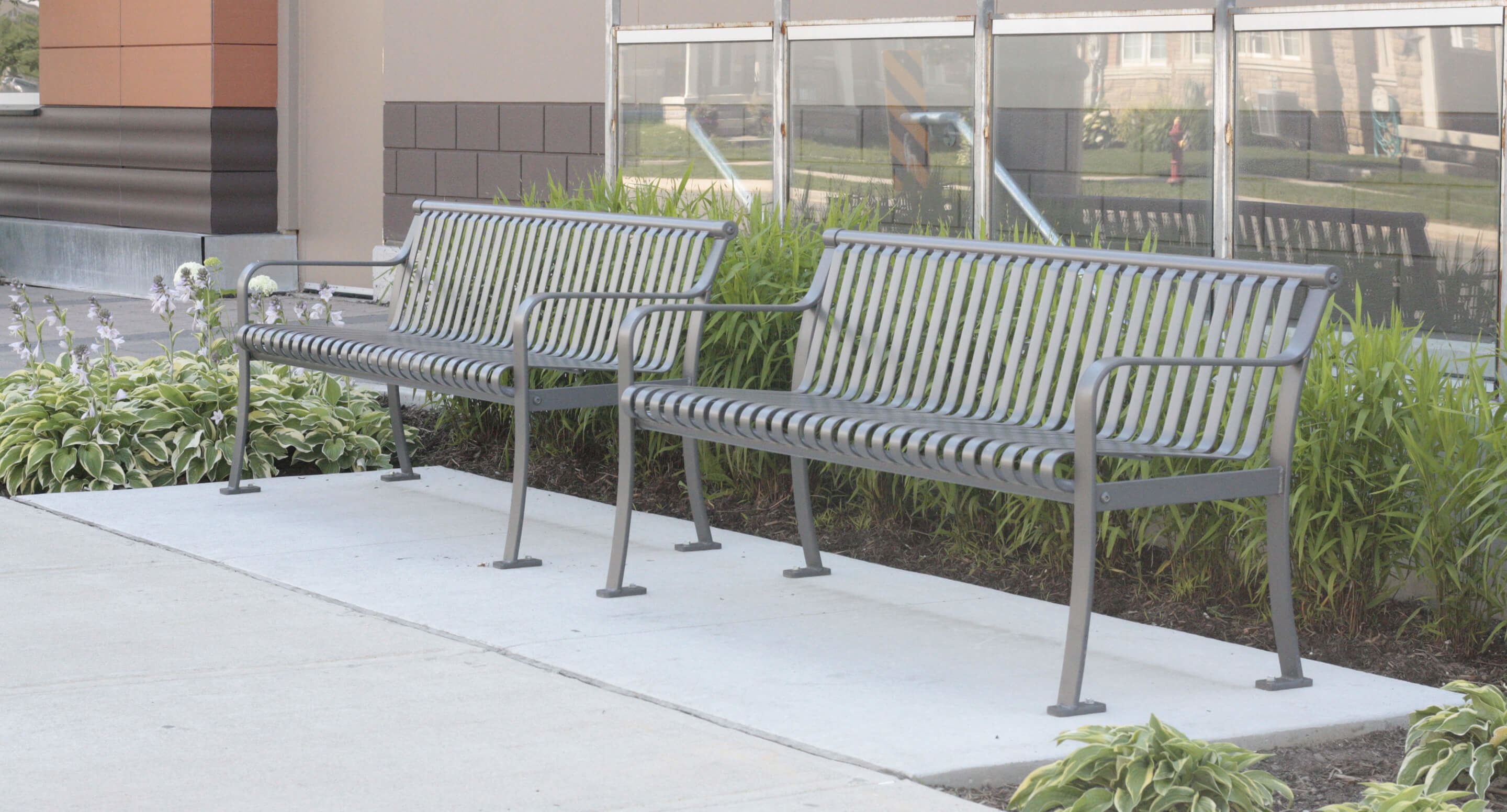

Two metal benches are placed on a concrete sidewalk next to a building with glass windows and surrounded by green plants.Two metal benches are placed on a concrete sidewalk next to a building with glass windows and surrounded by green plants.

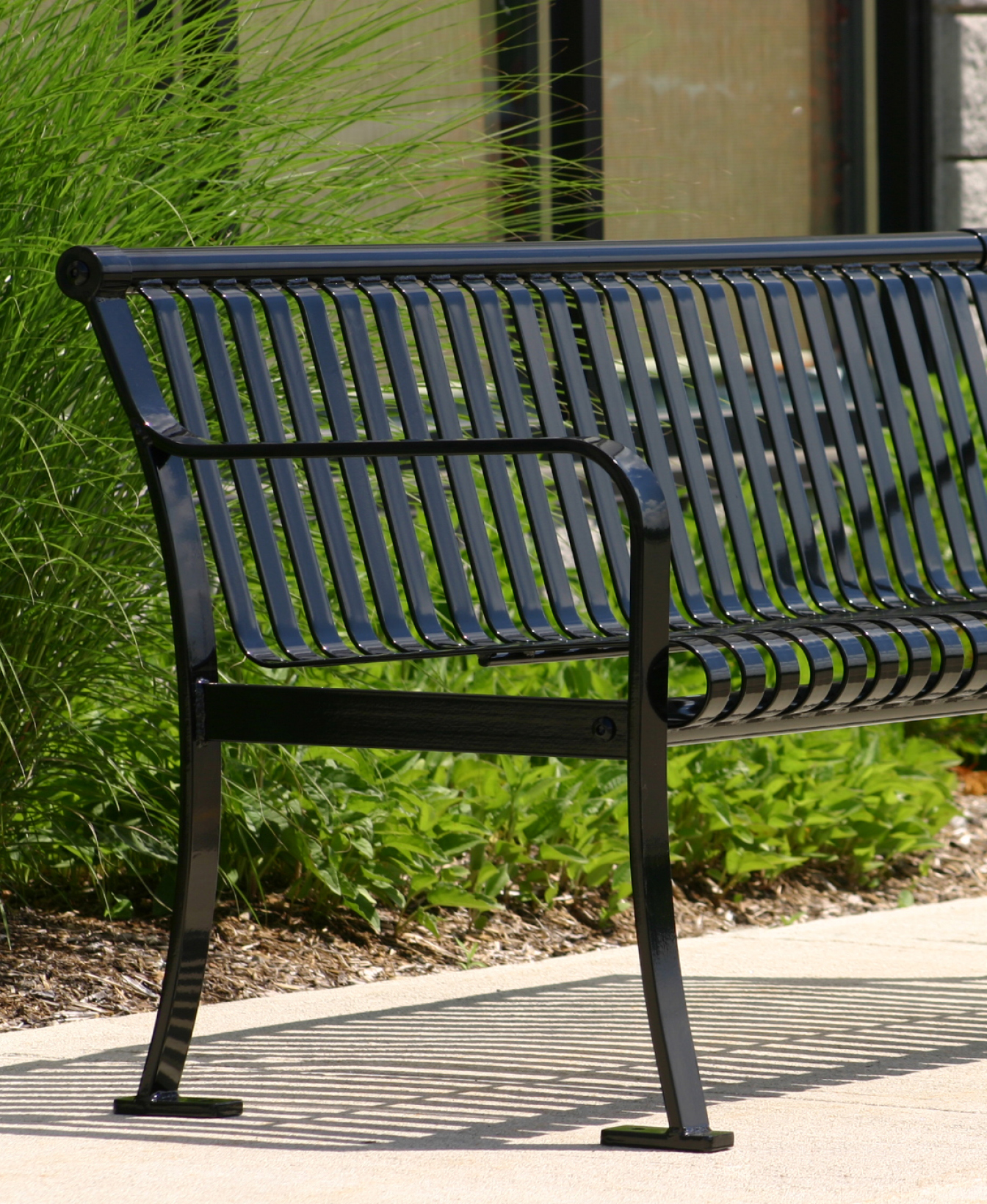

Metal bench with vertical slats outsideMetal bench with vertical slats outside
Three black metal benches are arranged on a concrete patio outside a modern building with large windows and landscaping features.Three black metal benches are arranged on a concrete patio outside a modern building with large windows and landscaping features.

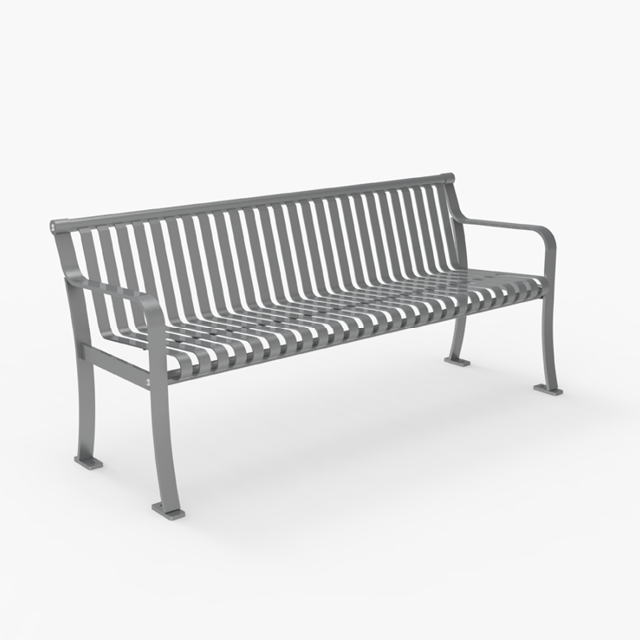

510 Backed Bench

Streamlined and timeless, the 510 Backed Bench features vertical or horizontal steel flat bar for a refined, architectural presence.

Quick Links

View All Downloads

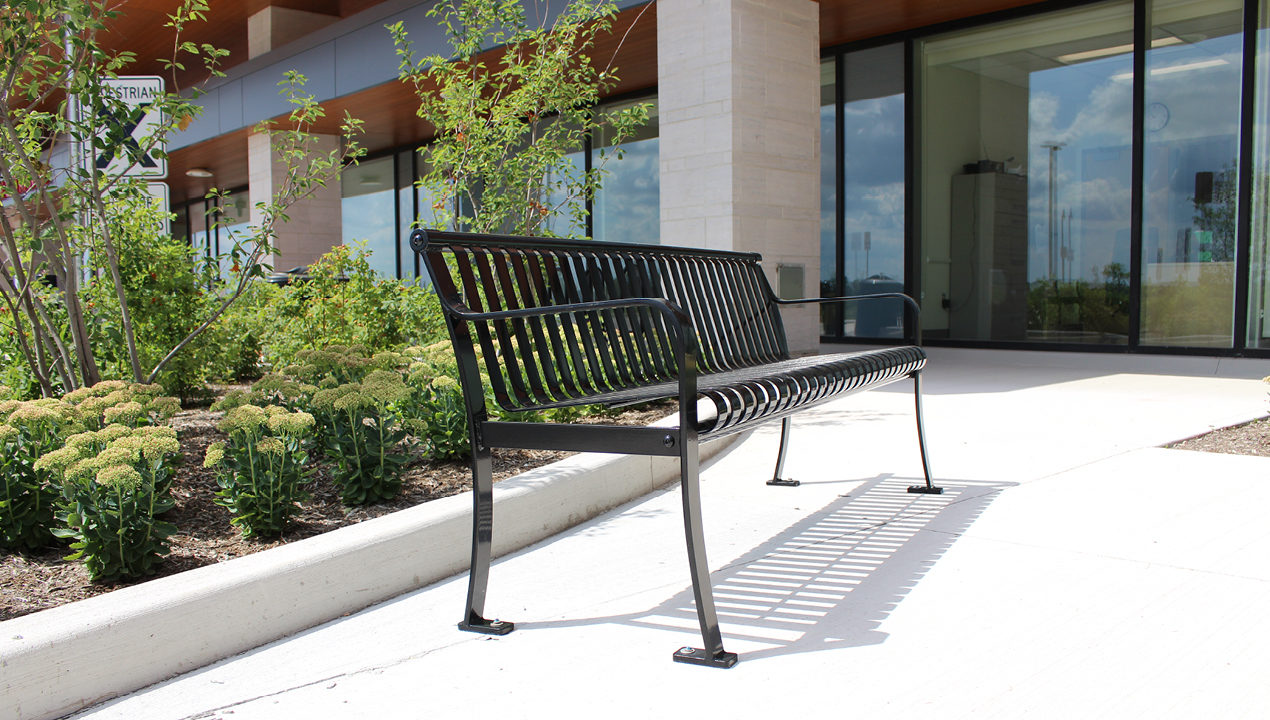

A 510 Backed Bench in black metal sits on a concrete surface beside green plants and tall grass.

Product Info

Finishes

Steel and Aluminum components are protected with E-Coat Rust Inhibitors. The Maglin Powdercoat System provides a durable finish on steel and aluminum surfaces.

Installation

The 500 Series - 510 Backed Benches are delivered pre-assembled. Holes (0.5") are provided in each foot for securing to base.

Material Options
  • Metal
Options
  • Plaque
  • Center Arm

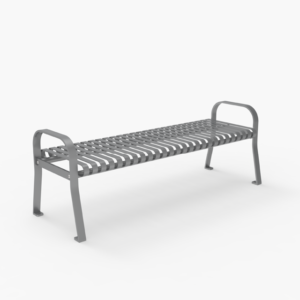

  • Backless Bench
Standard Powdercoat Colors
Gloss Collection
Green
RAL 6037
Turquoise
RAL 5018
Reseda Green
RAL 6011
Pastel Blue
RAL 5024
Blue
RAL 5005
Violet Blue
RAL 5000
Red
RAL 3002
Orange
RAL 2009
Saffron Yellow
RAL 1017
Yellow
RAL 1018
White
RAL 9016
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Fine Textured Collection* (matte finish)
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Corten
Due to variations in screen resolution, color swatches may vary slightly from actual colors. Please contact Maglin for samples. *Fine Textured Paint available for an upcharge. Not available on metal table tops and stacking chairs, or for vinyl graphic application.
Download Color Chart
Request a Sample

Dimensions

Metal
Image Model Description Height Length Weight

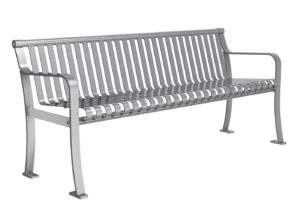

Grey Bench with Horizontal Slats and Arms MBE-0510-00010 500 Series - 510 Backed Bench: 70in L, H.S. Steel Tube and Flat Bar Ends, Metal Seat and Back, Two End Arms 31.4” (79.7cm) 70” (177.8cm) 152.8lbs (69.3kg)

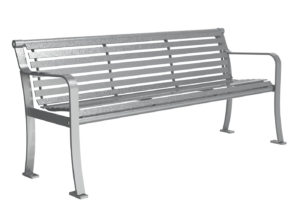

Grey Bench with Horizontal Slats and Arms MBE-0510-00016 500 Series - 510 Backed Bench: 70in L, H.S. Steel Tube and Flat Bar Ends, Metal Horizontal Seat and Back, Two End Arms 31.4” (79.7cm) 70” (177.8cm) 179.8lbs (81.6kg)

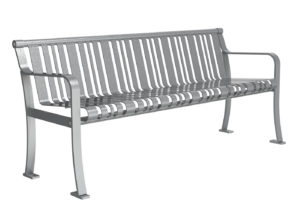

Grey Bench with Vertical Slats MBE-0510-00023 500 Series - 510 Backed Bench: 70in L, H.S. Steel Tube and Flat Bar Ends, Metal Vertical Seat and Back, Variable Slat Widths, Two End Arms 31.4” (79.7cm) 70” (177.8cm) 154.8lbs (70.2kg)

Downloads

Three red outdoor chairs are aligned on a paved surface with a blurred background of buildings, trees, and a sunset sky.Three red outdoor chairs are aligned on a paved surface with a blurred background of buildings, trees, and a sunset sky.

Order Process

  1. Step

    Get a quote - or request support with your project’s customization. Call toll free 1-800-716-5506 if you’d like to speak with someone right away.

  2. Step

    Purchase Easily Through Your Maglin Representative. Not sure who that is? Use our online tool and find your rep today!

  3. Step

    Standard Orders will Arrive in 6-8 Weeks. For custom products, the lead times are typically 10-12 Weeks.
