300 Series

300 Bike Racks

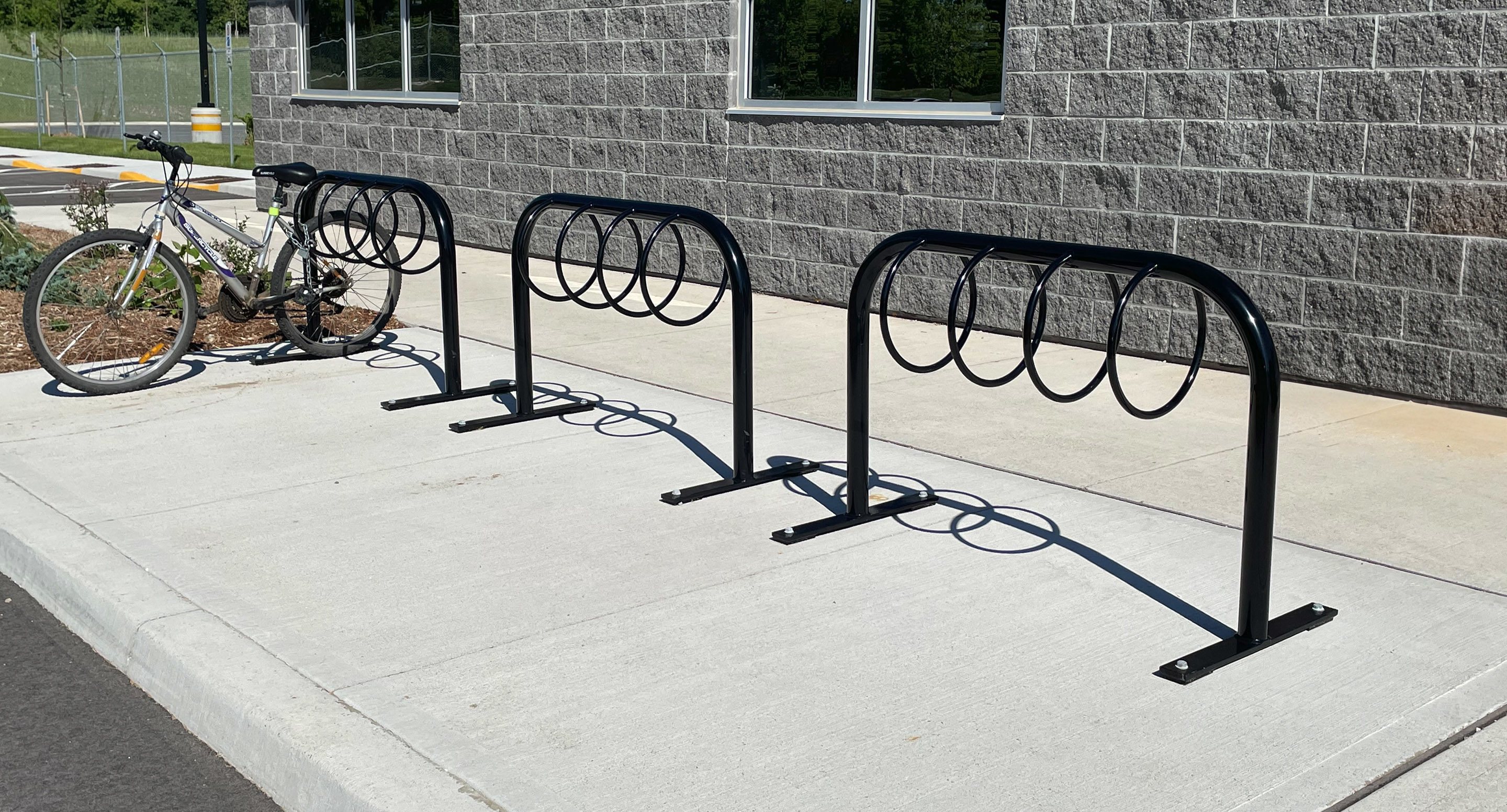

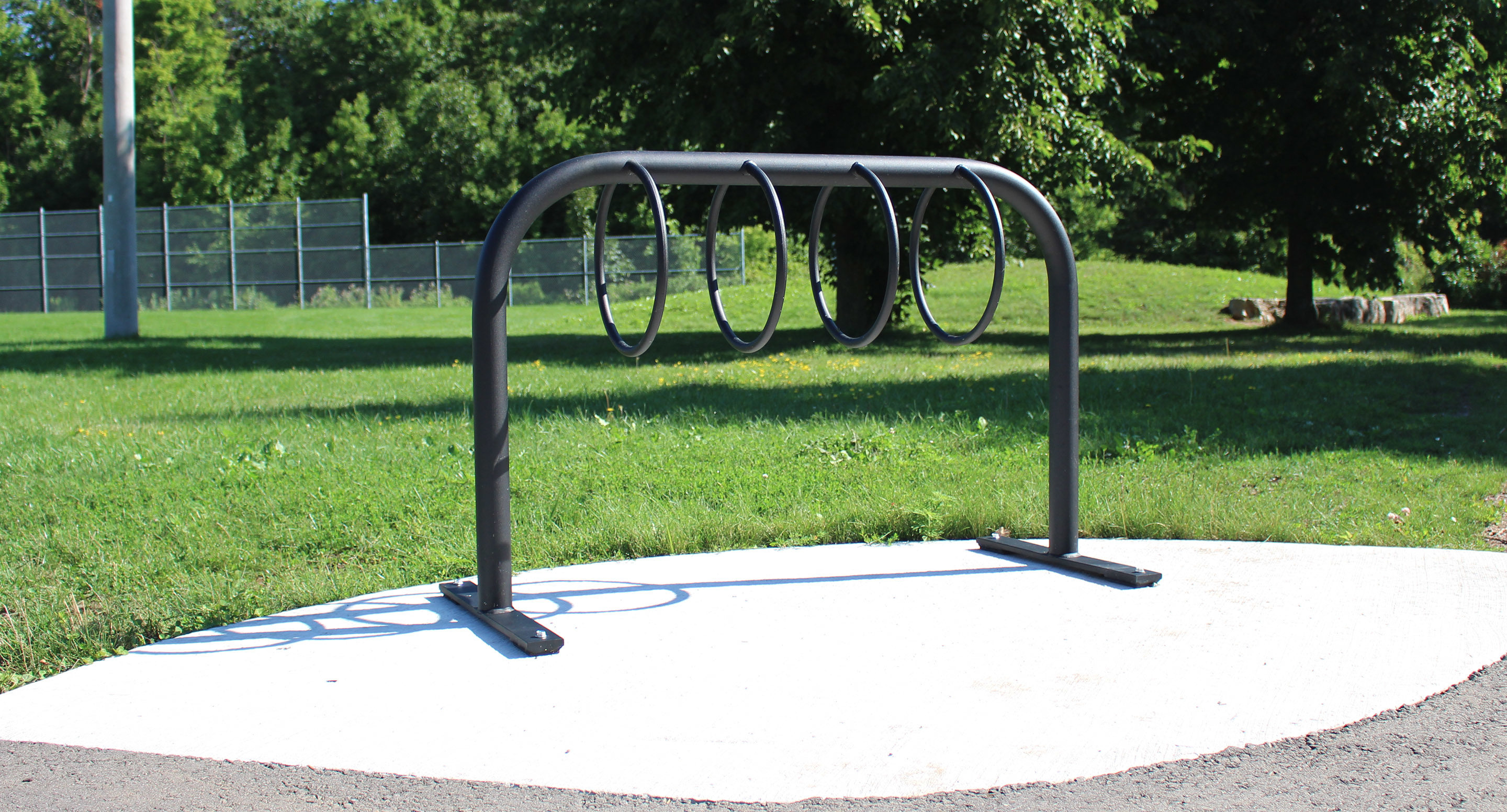

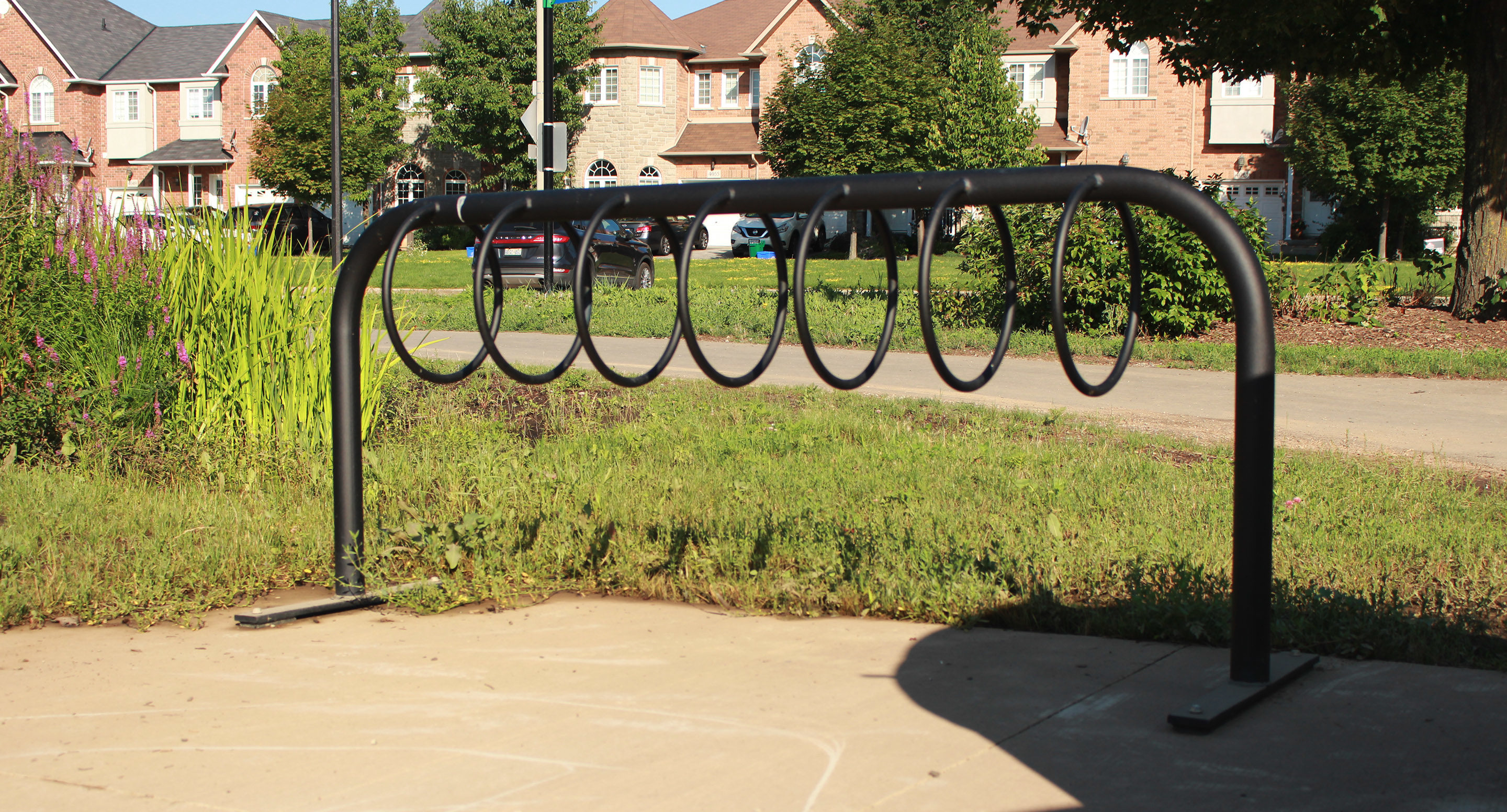

The 300 Series – 300 Bicycle Rack, available with 4, 5 and 7 ring configurations, allows for orderly parking of multiple bicycles in high-traffic spaces like college and university campuses, libraries, healthcare facilities and commercial office settings. Solid steel rod and HS steel tube construction ensure stability and security with this high-capacity bike rack.

Click Quick Quote to receive model number and pricing.
Material Options
  • Solid Steel Rod and H.S. Steel Tube
Options
  • Direct Burial
  • Surface Mount
  • 4 Rings
  • 5 Rings
  • 7 Rings
Finishes

All steel components are protected with E-Coat Rust Proofing. The Maglin Powdercoat System provides a durable finish on all metal surfaces.

Installation

The 300 Series - 300 Bike Rack is delivered pre-assembled. It is available with either a surface mount or direct burial installation option.

Solid Steel Rod and H.S. Steel Tube

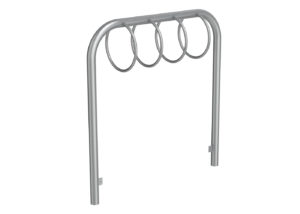

Direct Burial, 4 Bikes
Length: 49” (124.5cm)
Height: 33” (83.8cm)
Depth: 2.4” (6.0cm)
Height Above Grade: 33” (83.8cm)
Height Below Grade: 18” (45.7cm)
Diameter: 14” (35.6cm)
Weight: 62.2lbs (28.2kg)
Solid Steel Rod and H.S. Steel Tube

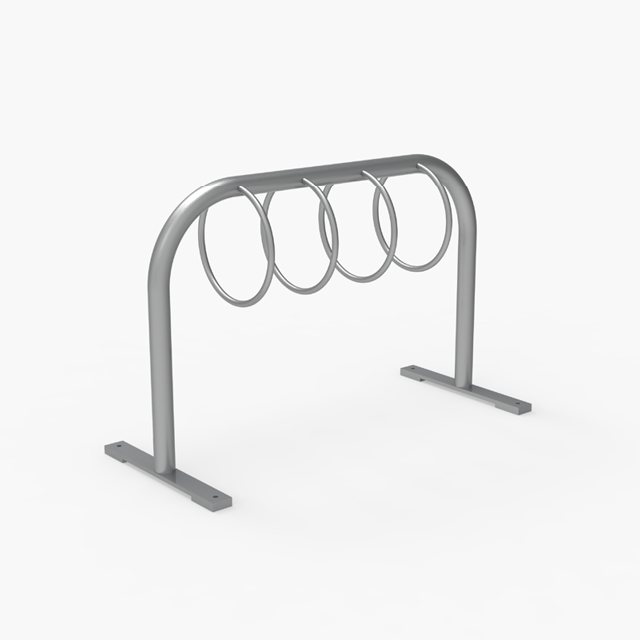

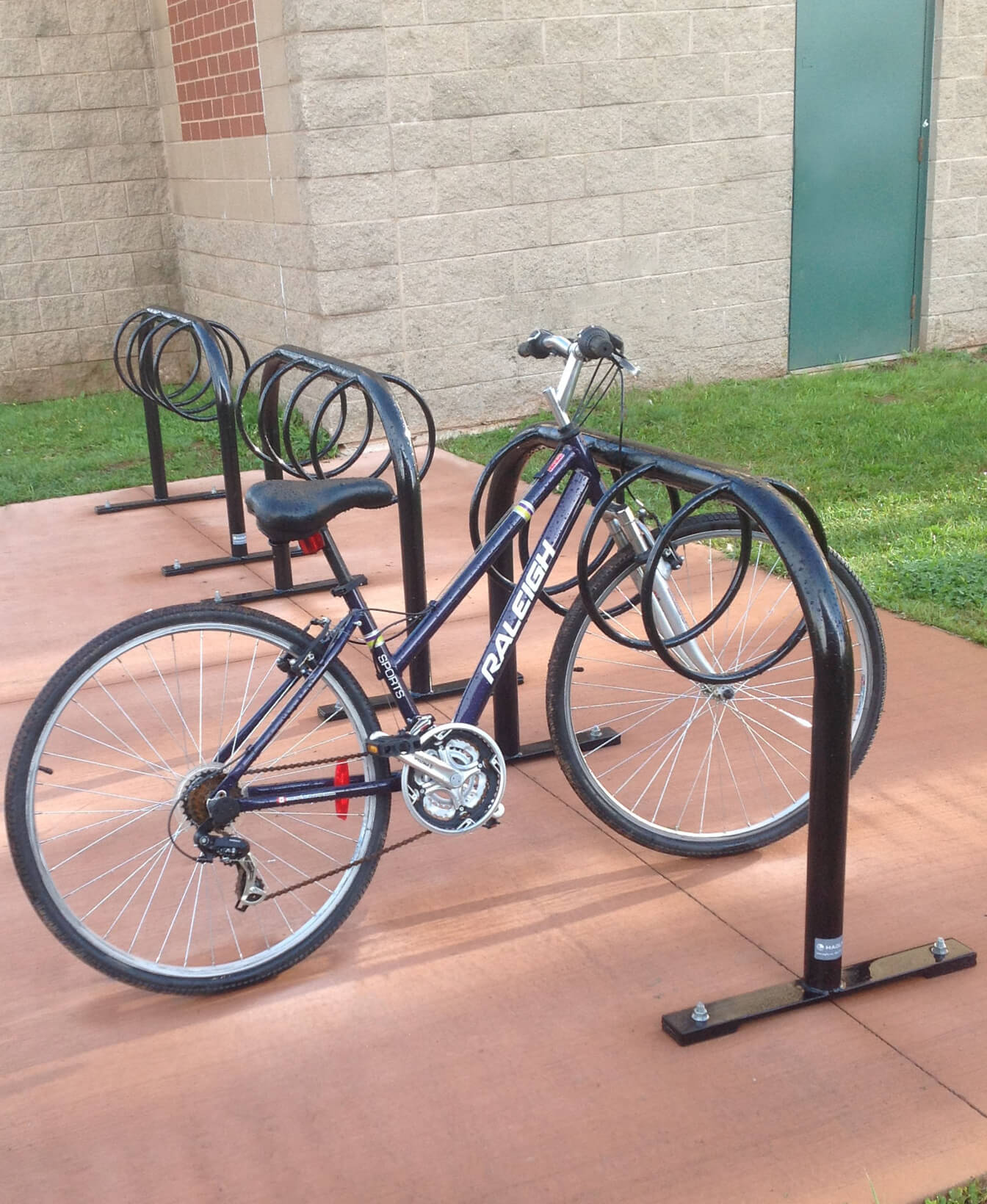

Surface Mount, 4 Bikes
Length: 49.8” (126.4cm)
Height: 33” (83.8cm)
Depth: 22” (55.9cm)
Height Above Grade: 33” (83.8cm)
Diameter: 14” (35.6cm)
Weight: 70.9lbs (32.2kg)
Solid Steel Rod and H.S. Steel Tube

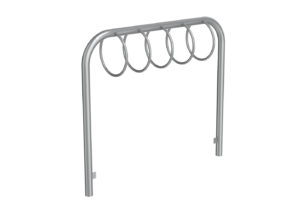

Direct Burial, 5 Bikes
Length: 58.8” (149.2cm)
Height: 33” (83.8cm)
Depth: 2.4” (6.0cm)
Height Above Grade: 33” (83.8cm)
Height Below Grade: 18” (45.7cm)
Diameter: 14” (35.6cm)
Weight: 70lbs (31.8kg)
Solid Steel Rod and H.S. Steel Tube

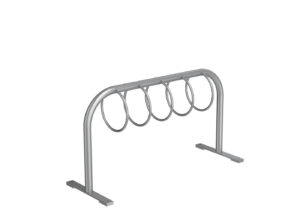

Surface Mount, 5 Bikes
Length: 58.8” (149.2cm)
Height: 33” (83.8cm)
Depth: 22” (55.9cm)
Height Above Grade: 33” (83.8cm)
Diameter: 14” (35.6cm)
Weight: 78.5lbs (35.6kg)
Solid Steel Rod and H.S. Steel Tube

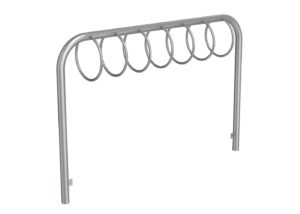

Direct Burial, 7 Bikes
Length: 76” (193.0cm)
Height: 33” (83.8cm)
Depth: 2.4” (6.0cm)
Height Above Grade: 33” (83.8cm)
Height Below Grade: 18” (45.7cm)
Diameter: 14” (35.6cm)
Weight: 85lbs (38.6kg)
Solid Steel Rod and H.S. Steel Tube

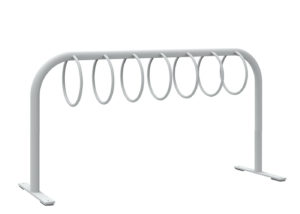

Surface Mount, 7 Bikes
Length: 76” (193.0cm)
Height: 33” (83.8cm)
Depth: 22” (55.9cm)
Height Above Grade: 33” (83.8cm)
Diameter: 14” (35.6cm)
