4300 Bollards

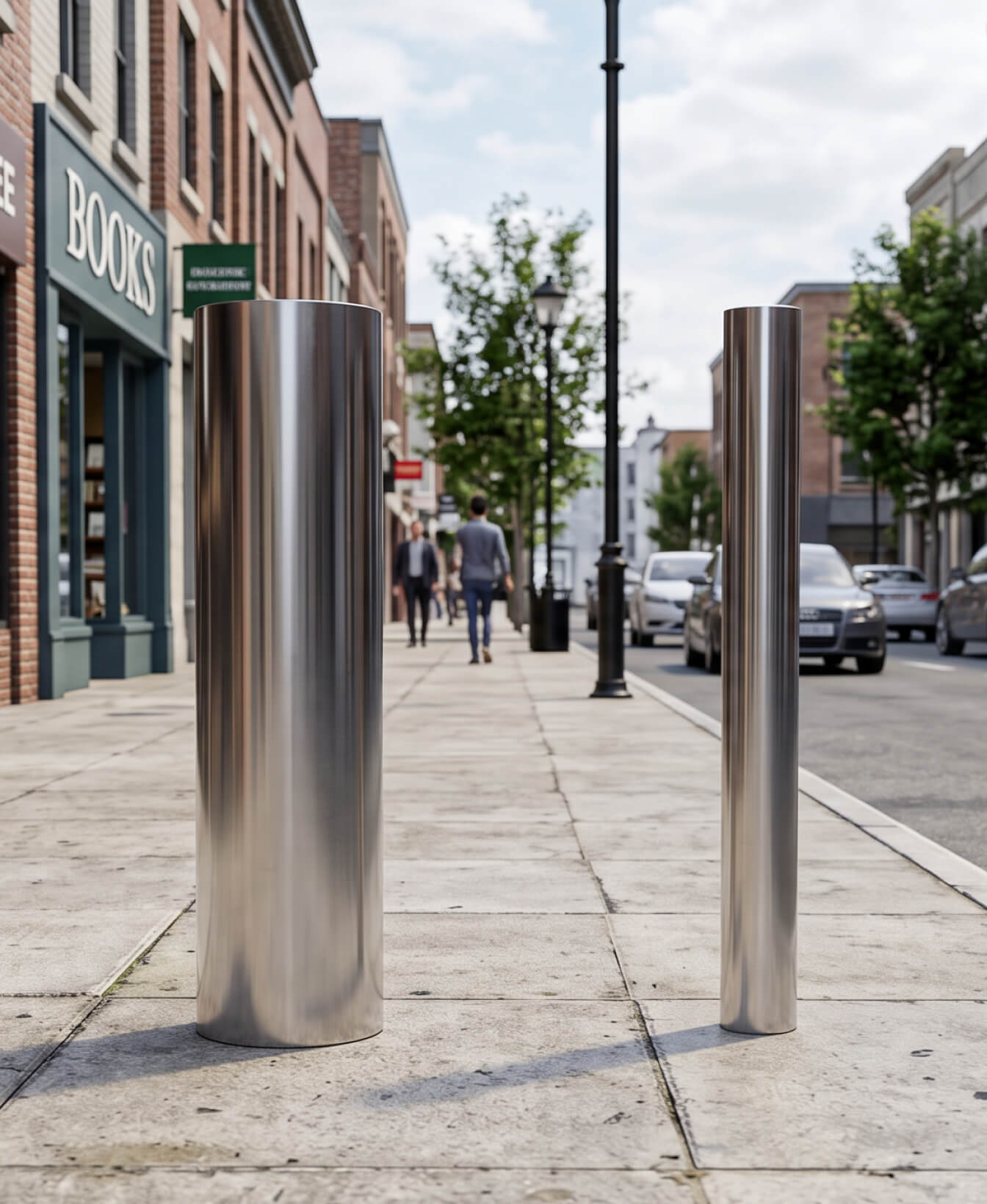

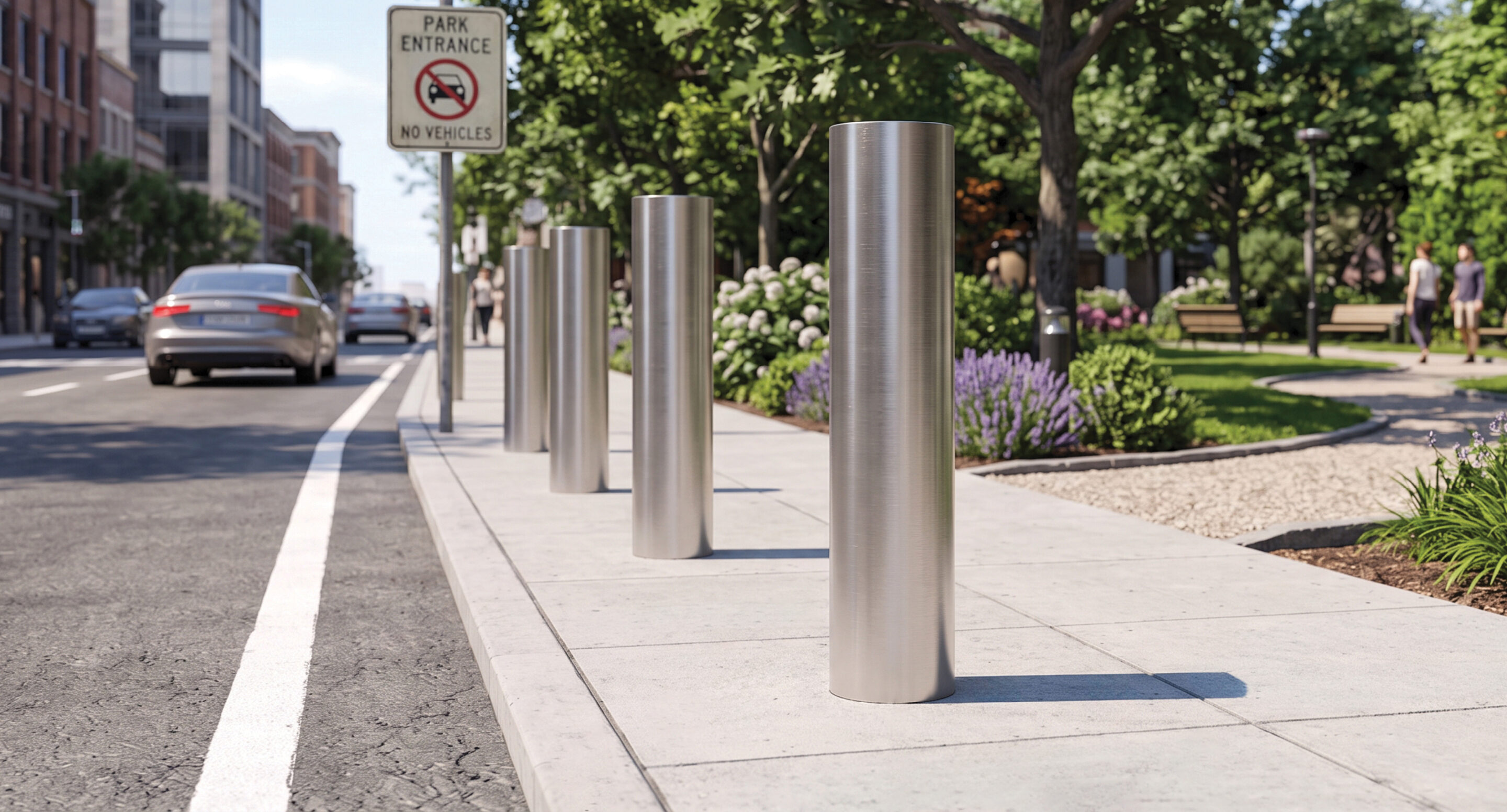

Designed for high-traffic settings, from retail storefronts and transit corridors to busy plazas. The 4300 Bollard comes in three diameters, so a single design can run from a quiet bike path to a busy vehicle entry point.
Product Info
Finishes
Steel and Aluminum components are protected with E-Coat Rust Inhibitors. The Maglin Powdercoat System provides a durable finish on steel and aluminum surfaces.
Installation
Four base types are available from permanent direct burial to removable options, providing flexbility for different site access needs.
Material Options
- Steel
- Stainless Steel
Options
- Direct Burial
- Flush Removable Mount
- Removable Mount
- Direct Burial - Quick Release
Standard Powdercoat Colors
Gloss Collection
Green
RAL 6037
Turquoise
RAL 5018
Reseda Green
RAL 6011
Pastel Blue
RAL 5024
Blue
RAL 5005
Violet Blue
RAL 5000
Salmon Orange
RAL 2012
Pebble Grey
RAL 7032
Red
RAL 3002
Orange
RAL 2009
Saffron Yellow
RAL 1017
Yellow
RAL 1018
Oyster White
RAL 1013
Grey Brown
RAL 8019
White
RAL 9016
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Matte Collection
Reseda Green
RAL 6011
Pastel Blue
RAL 5024
Violet Blue
RAL 5000
Salmon Orange
RAL 2012
Pebble Grey
RAL 7032
Saffron Yellow
RAL 1017
Oyster White
RAL 1013
Grey Brown
RAL 8019
Fine Textured Collection*
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Corten
Due to variations in screen resolution, color swatches may vary slightly from actual colors. Please contact Maglin for samples.
*Fine Textured Paint available for an upcharge. Not available on metal table tops and stacking chairs, or for vinyl graphic application.
Dimensions & Model Numbers
Steel
| Image | Model | Description | Diameter | Height | Weight |
|---|---|---|---|---|---|
 |

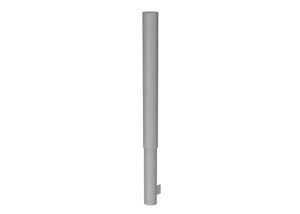

MBO-4300-00001
|
4300 Series - 4300 Bollard: 4.5in Dia, Steel, Flat Top, Base Type 1 - Direct Burial | 4.5” (11.4cm) | 40.1” (101.9cm) | 60.3lbs (27.3kg) |
 |

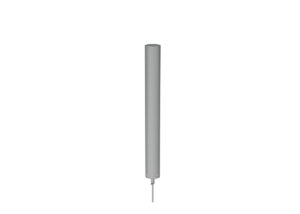

MBO-4300-00002
|
4300 Series - 4300 Bollard: 4.5in Dia, Steel, Flat Top, Base Type 3 - Removable | 4.5” (11.4cm) | 40.2” (102.1cm) | 24lbs (10.9kg) |
 |

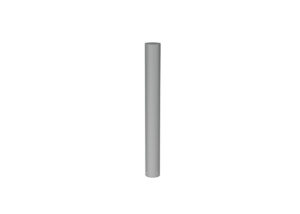

MBO-4300-00003
|
4300 Series - 4300 Bollard: 4.5in Dia, Steel, Flat Top, Base Type 2 - Removable | 4.5” (11.4cm) | 40.3” (102.4cm) | 23lbs (10.4kg) |
 |

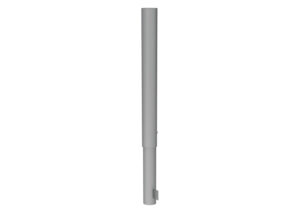

MBO-4300-00004
|
4300 Series - 4300 Bollard: 4.5in Dia, Steel, Flat Top, Base Type 4 - Direct Burial, Quick Release | 4.5” (11.4cm) | 40” (101.7cm) | 36.8lbs (16.7kg) |
 |

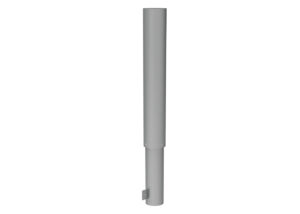

MBO-4300-00009
|
4300 Series - 4300 Bollard: 6.625in Dia, Steel, Flat Top, Base Type 1 - Direct Burial | 6.6” (16.8cm) | 40” (101.5cm) | 98.5lbs (44.7kg) |
 |
MBO-4300-00010
|
4300 Series - 4300 Bollard: 6.625in Dia, Steel, Flat Top, Base Type 3 - Removable | 6.6” (16.8cm) | 40” (101.7cm) | 42.1lbs (19.1kg) |
 |

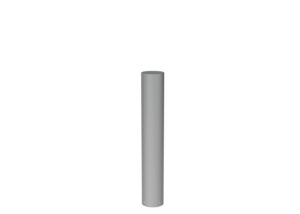

MBO-4300-00011
|
4300 Series - 4300 Bollard: 6.625in Dia, Steel, Flat Top, Base Type 2 - Removable | 6.6” (16.8cm) | 40” (101.6cm) | 38.8lbs (17.6kg) |
 |

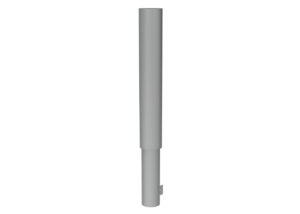

MBO-4300-00012
|
4300 Series - 4300 Bollard: 6.625in Dia, Steel, Flat Top, Base Type 4 - Direct Burial, Quick Release | 6.6” (16.8cm) | 39.9” (101.4cm) | 60.3lbs (27.4kg) |
 |
MBO-4300-00017
|
4300 Series - 4300 Bollard: 10.75in Dia, Steel, Flat Top, Base Type 1 - Direct Burial | 10.8” (27.3cm) | 40” (101.6cm) | 197.5lbs (89.6kg) |
 |
MBO-4300-00018
|
4300 Series - 4300 Bollard: 10.75in Dia, Steel, Flat Top, Base Type 3 - Removable | 10.8” (27.3cm) | 40” (101.7cm) | 80.1lbs (36.3kg) |
 |
MBO-4300-00019
|
4300 Series - 4300 Bollard: 10.75in Dia, Steel, Flat Top, Base Type 2 - Removable | 10.8” (27.3cm) | 40” (101.7cm) | 73.9lbs (33.5kg) |
 |
MBO-4300-00020
|
4300 Series - 4300 Bollard: 10.75in Dia, Steel, Flat Top, Base Type 4 - Direct Burial, Quick Release | 10.8” (27.3cm) | 40” (101.6cm) | 123.1lbs (55.8kg) |
Stainless Steel
| Image | Model | Description | Diameter | Height | Weight |
|---|---|---|---|---|---|
 |

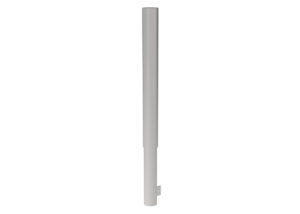

MBO-4300-00005
|
4300 Series - 4300 Bollard: 4.5in Dia, 304 Stainless Steel, Flat Top, Base Type 1 - Direct Burial | 4.5” (11.4cm) | 40.1” (101.9cm) | 60.8lbs (27.6kg) |
 |

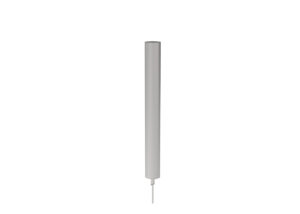

MBO-4300-00006
|
4300 Series - 4300 Bollard: 4.5in Dia, 304 Stainless Steel, Flat Top, Base Type 3 - Removable | 4.5” (11.4cm) | 40.2” (102.1cm) | 24.5lbs (11.1kg) |
 |
MBO-4300-00007
|
4300 Series - 4300 Bollard: 4.5in Dia, 304 Stainless Steel, Flat Top, Base Type 2 - Removable | 4.5” (11.4cm) | 40.3” (102.4cm) | 23.5lbs (10.7kg) |
 |

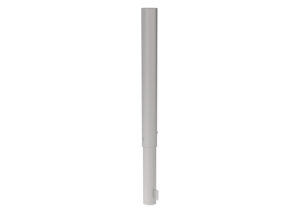

MBO-4300-00008
|
4300 Series - 4300 Bollard: 4.5in Dia, 304 Stainless Steel, Flat Top, Base Type 4 - Direct Burial, Quick Release | 4.5” (11.4cm) | 40” (101.7cm) | 37.3lbs (16.9kg) |
 |
MBO-4300-00013
|
4300 Series - 4300 Bollard: 6.625in Dia, 304 Stainless Steel, Flat Top, Base Type 1 - Direct Burial | 6.6” (16.8cm) | 40” (101.5cm) | 99.3lbs (45.1kg) |
 |

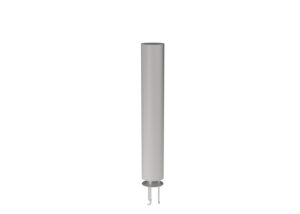

MBO-4300-00014
|
4300 Series - 4300 Bollard: 6.625in Dia, 304 Stainless Steel, Flat Top, Base Type 3 - Removable | 6.6” (16.8cm) | 40” (101.7cm) | 42.1lbs (19.1kg) |
 |

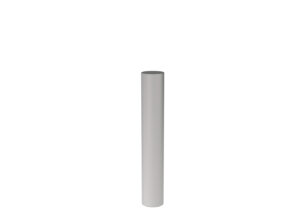

MBO-4300-00015
|
4300 Series - 4300 Bollard: 6.625in Dia, 304 Stainless Steel, Flat Top, Base Type 2 - Removable | 6.6” (16.8cm) | 40” (101.6cm) | 39.6lbs (18.0kg) |
 |
MBO-4300-00016
|
4300 Series - 4300 Bollard: 6.625in Dia, 304 Stainless Steel, Flat Top, Base Type 4 - Direct Burial, Quick Release | 6.6” (16.8cm) | 39.9” (101.4cm) | 60.3lbs (27.4kg) |
 |

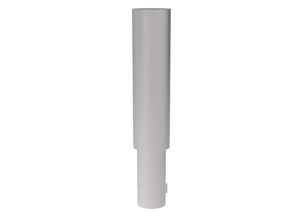

MBO-4300-00021
|
4300 Series - 4300 Bollard: 10.75in Dia, 304 Stainless Steel, Flat Top, Base Type 1 - Direct Burial | 10.8” (27.3cm) | 40” (101.6cm) | 199.1lbs (90.3kg) |
 |
MBO-4300-00022
|
4300 Series - 4300 Bollard: 10.75in Dia, 304 Stainless Steel, Flat Top, Base Type 3 - Removable | 10.8” (27.3cm) | 40” (101.7cm) | 81.8lbs (37.1kg) |
 |

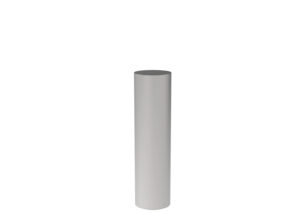

MBO-4300-00023
|
4300 Series - 4300 Bollard: 10.75in Dia, 304 Stainless Steel, Flat Top, Base Type 2 - Removable | 10.8” (27.3cm) | 40” (101.7cm) | 75.6lbs (34.3kg) |
 |
MBO-4300-00024
|
4300 Series - 4300 Bollard: 10.75in Dia, 304 Stainless Steel, Flat Top, Base Type 4 - Direct Burial, Quick Release | 10.8” (27.3cm) | 40” (101.6cm) | 124.7lbs (56.6kg) |
