1500 Series

Lexicon Backed / Backless Benches

Lexicon’s multifunctional modular components bring a full spectrum of inspiring choice to custom site furnishings. Use an array of easy-to-assemble geometric shapes and surface materials to create your own curved or straight, backed or backless bench configuration in Maglin’s Product Builder.
Material Options
  • Laser Cut Steel Backrest
  • Laser Cut Steel Backrest, Laser Design 1
  • Steel
  • Ipe Wood
  • Steel Perforated
  • Orange Peel Texture High Density Polyethylene
  • High Density Paper Composite
  • Thermally Modified Ash Wood
Options
  • Backed
  • Backless
  • Curved
  • Straight
  • Side Arms
  • Armless
  • Modules
  • Planters
  • End Caps
Finishes

All steel components are protected with E-Coat Rust Proofing. The Maglin Powdercoat System provides a durable finish on all metal surfaces. Ipe wood slats are finished with penetrating sealers.

Installation

Individual Lexicon components come pre-assembled. Reference the Lexicon Installation Instructions document for onsite assembly and installation.

Steel
Two End Arms, Surface Mount
Length: 23.4” (59.4cm)
Height: 23.8” (60.3cm)
Depth: 1” (2.5cm)
Weight: 21lbs (9.5kg)
Steel
No End Arms, Surface Mount
Length: 20” (50.9cm)
Height: 18.1” (45.9cm)
Depth: 2” (5.1cm)
Weight: 18.8lbs (8.5kg)
Steel
Two End Arms, Surface Mount
Length: 22” (55.9cm)
Height: 23.8” (60.4cm)
Depth: 2” (5.1cm)
Weight: 24.1lbs (10.9kg)
Steel
No End Arms, Surface Mount
Length: 16.9” (43.0cm)
Height: 1.3” (3.3cm)
Depth: 1.2” (3.0cm)
Weight: 2lbs (0.9kg)
Steel
No End Arms, No
Length: 71.8” (182.2cm)
Height: 2.4” (6.0cm)
Depth: 17” (43.2cm)
Weight: 93.5lbs (42.4kg)
Steel
No End Arms, Surface Mount
Length: 19.6” (49.8cm)
Height: 17.9” (45.5cm)
Depth: 3” (7.6cm)
Weight: 33.2lbs (15.1kg)
Steel
No End Arms, Surface Mount
Length: 20.4” (51.9cm)
Height: 18.4” (46.8cm)
Depth: 2” (5.1cm)
Weight: 18lbs (8.2kg)
Steel
Two End Arms, Surface Mount
Length: 22.3” (56.7cm)
Height: 23.8” (60.3cm)
Depth: 2” (5.1cm)
Weight: 20lbs (9.1kg)
Steel
No End Arms, Surface Mount
Length: 21.7” (55.1cm)
Height: 19.1” (48.4cm)
Depth: 1” (2.5cm)
Weight: 18lbs (8.2kg)
Ipe Wood
No End Arms, No
Length: 60.8” (154.3cm)
Depth: 17” (43.2cm)
Weight: 54lbs (24.5kg)
Ipe Wood
No End Arms, No
Length: 47.8” (121.3cm)
Height: 2.5” (6.4cm)
Depth: 17” (43.2cm)
Weight: 48lbs (21.8kg)
Ipe Wood
No End Arms, No
Length: 71.8” (182.2cm)
Height: 2.6” (6.5cm)
Depth: 17” (43.2cm)
Weight: 75.3lbs (34.2kg)
Steel Perforated
No End Arms, No
Length: 60.8” (154.3cm)
Height: 2.4” (6.2cm)
Depth: 17” (43.2cm)
Weight: 73lbs (33.1kg)
Steel Perforated
No End Arms, No
Length: 47.8” (121.3cm)
Height: 2.4” (6.0cm)
Depth: 17” (43.2cm)
Weight: 63lbs (28.6kg)
High Density Paper Composite
No End Arms, No
Length: 60.8” (154.3cm)
Height: 2.5” (6.4cm)
Depth: 17” (43.2cm)
Weight: 59lbs (26.8kg)
High Density Paper Composite
No End Arms, No
Length: 47.8” (121.3cm)
Height: 2.5” (6.4cm)
Depth: 17” (43.2cm)
Weight: 52lbs (23.6kg)
Orange Peel Texture High Density Polyethylene
No End Arms, No
Length: 47.8” (121.3cm)
Height: 2.5” (6.4cm)
Depth: 17” (43.2cm)
Weight: 46lbs (20.9kg)
Orange Peel Texture High Density Polyethylene
No End Arms, No
Length: 71.8” (182.2cm)
Height: 2.5” (6.4cm)
Depth: 17” (43.2cm)
Weight: 69.1lbs (31.3kg)
Thermally Modified Ash Wood
No End Arms, No
Length: 71.8” (182.2cm)
Height: 2.6” (6.5cm)
Depth: 17” (43.2cm)
Weight: 64.2lbs (29.1kg)
Thermally Modified Ash Wood
No End Arms, No
Length: 47.8” (121.3cm)
Height: 2.5” (6.4cm)
Depth: 17” (43.2cm)
Weight: 48lbs (21.8kg)
Thermally Modified Ash Wood
No End Arms, No
Length: 60.8” (154.3cm)
Depth: 17” (43.2cm)
Weight: 54lbs (24.5kg)
Laser Cut Steel Backrest
No End Arms, No
Length: 44” (111.8cm)
Height: 18.3” (46.5cm)
Weight: 24.8lbs (11.2kg)
Laser Cut Steel Backrest
No End Arms, No
Length: 59.4” (150.8cm)
Height: 18.3” (46.5cm)
Weight: 38.3lbs (17.4kg)
Laser Cut Steel Backrest
No End Arms, No
Length: 42.4” (107.6cm)
Height: 18.3” (46.5cm)
Weight: 30.8lbs (14.0kg)
Laser Cut Steel Backrest, Laser Design 1
No End Arms, No
Length: 44” (111.8cm)
Height: 18.3” (46.5cm)
Weight: 24.8lbs (11.2kg)
Laser Cut Steel Backrest, Laser Design 1
No End Arms, No
Length: 59.4” (150.8cm)
Height: 18.3” (46.5cm)
Weight: 36.7lbs (16.6kg)
Laser Cut Steel Backrest, Laser Design 1
No End Arms, No
Length: 42.4” (107.6cm)
Height: 18.3” (46.5cm)
Weight: 29.7lbs (13.5kg)

Projects

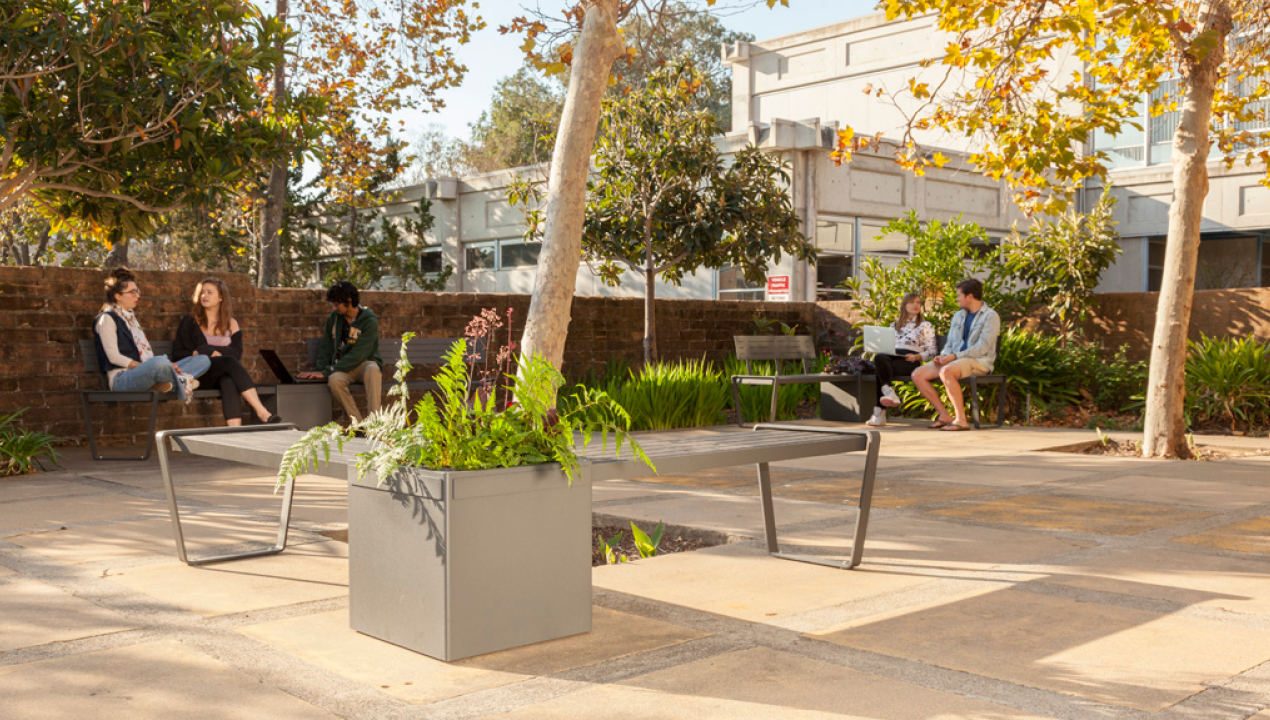

Individuals Sitting on Benches

Connecting People and Place

Educational design is evolving and a trend to more flexible learning spaces is evident. The learning environment is moving beyond the classroom walls and emphasis…

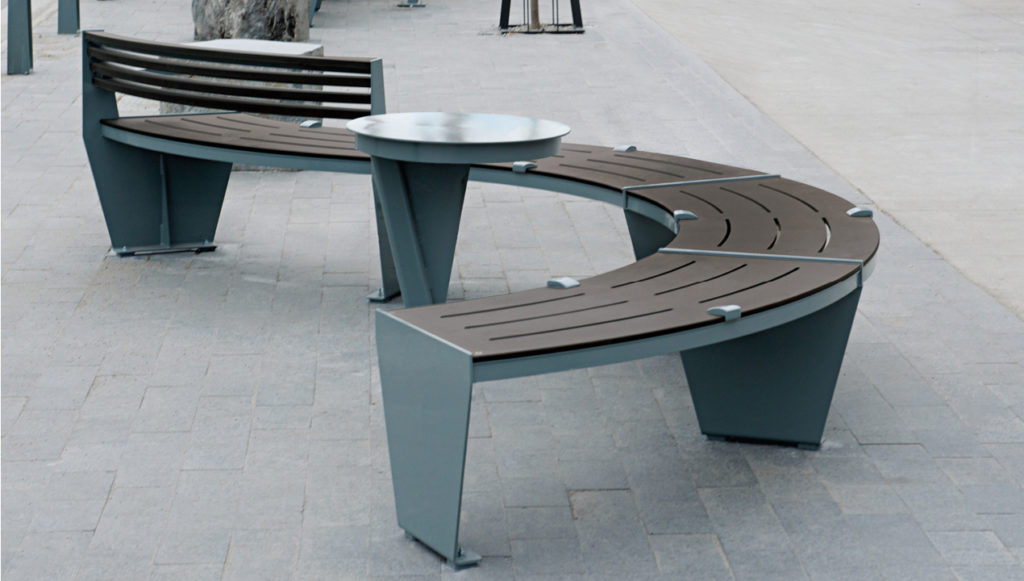

Curved S Bench with side table and skate deterrents
